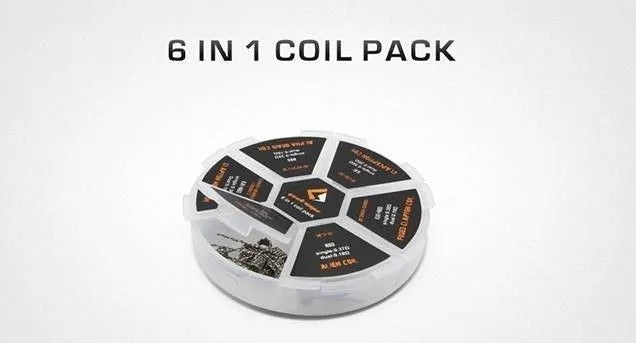

Geekvape 6 in 1 Coil Pack
Geekvape 6 in 1 Coil Pack
Couldn't load pickup availability
This is an age restricted product. You must be 18 or older in order to purchase this item. An age check will be completed during checkout using OneID. This process works automatically and you do not have to take pictures of passports or driving licences and you will NOT be asked for sensitive information. Learn more about OneID.
Geekvape 6 in 1 Coil Pack is a must have for vapers. A collection of 20 weird and wonderful coils in Nichrome (Ni80) and Kanthal (KA1), 2 types in each alloy and two types combining wires from both alloys.
All the coils in the Geekvape 6 in 1 Coil Pack have an inner diameter of 3mm and all the quoted resistances are for a single coil.
As already mentioned, there are some weird and wonderful coils in the Geekvape 6 in 1 Coil Pack, but they are all worth explaining:

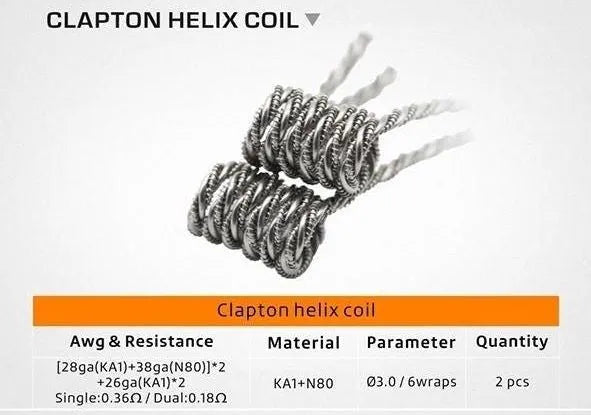

The Clapton Helix Coil is formed by taking 2 Spaced Clapton (28g KA1 + 38g Ni80) wires and 2 KA1 26g wires and twisting all 4 wires together

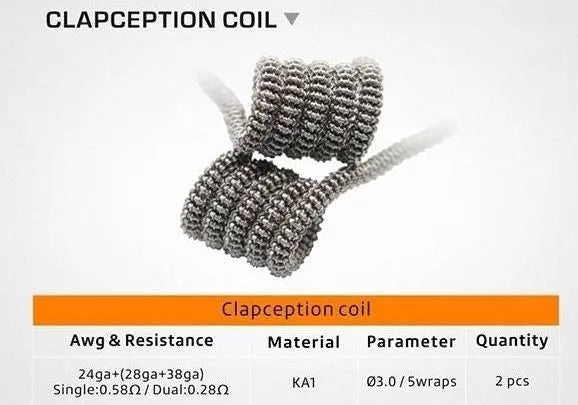

The Clapception Coil is formed by Space Claptonising a 28g KA1 wire with 38g KA1, this wire is then used to Claptonise a 24g KA1 core

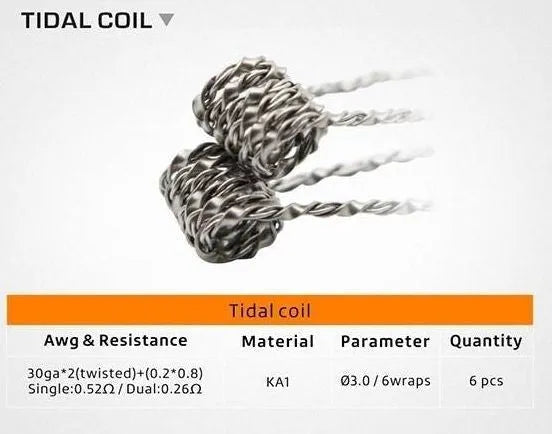

The Tidal Coil is formed by twisting 2 30g KA1 wires, this wire is then twisted with a 0.2 x 0.8mm KA1 ribbon.

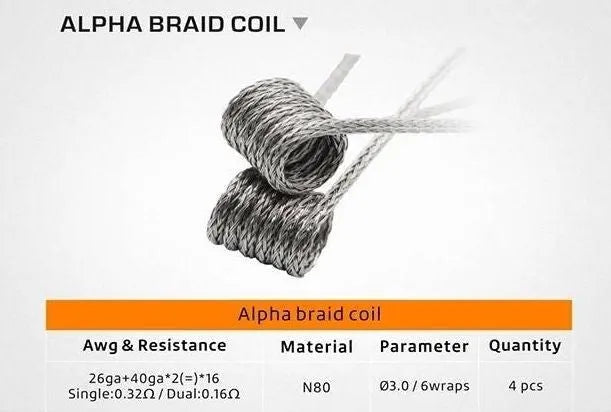

The Alpha Braid Coil is formed by taking a 26g Ni80 wire as a core and then braiding it with 16 pairs of 40g Ni80

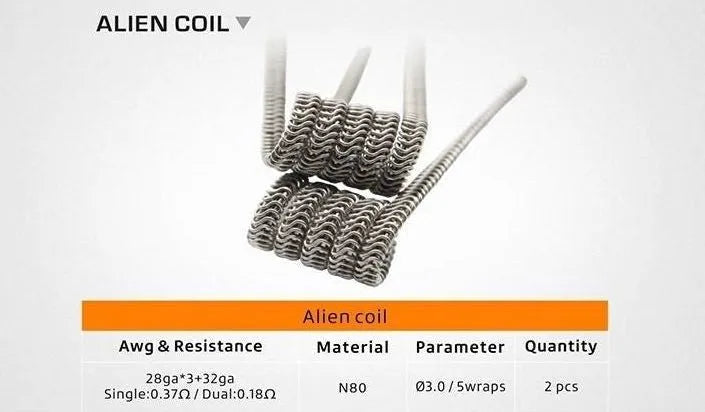

Alien Coils are formed by laying 3 28g Ni80 wires side by side and Claptonising them with a de-cored 32g Ni80 wire. By de-cored we mean that the 32g wire has been sued to Claptonise a wire, then stripped off the wire and stretched (like a telephone cord), this is what gives the Alien its distinctive "wavy" appearance.

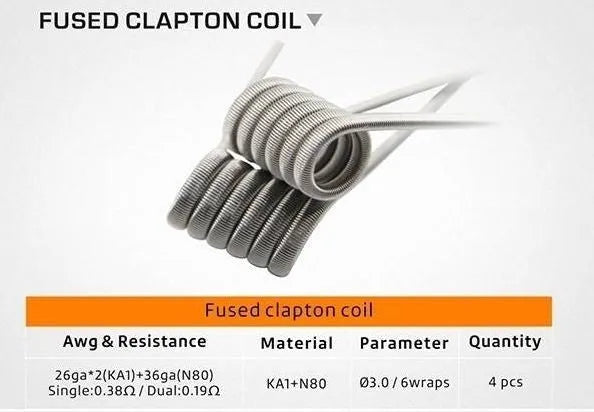

Fused Clapton is formed by taking a core of 2 26g KA1 wires and Claptonising it with 36g Ni80
In summary, the Geekvape 6 in 1 Coil Pack is a collection of coils you're unlikely to see elsewhere, weird and wonderful, but an absolutely fantastic collection that should be in every DIY enthusiast's tool-kit.

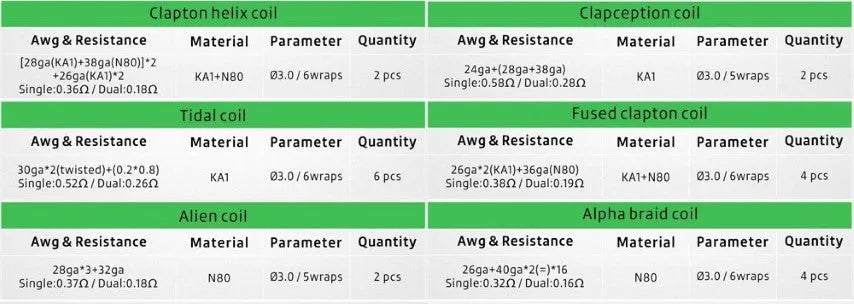

Geekvape 6 in 1 Coil Pack Features:
Alien coil: Ni80, 0.37ohm. 28g x 3 +32g Φ 3mm 5 wraps
Alpha braid coil: Ni80 , 0.32ohm 26g + (40g x 2(=) x 16) Φ 3mm 6 wraps
Fused Clapton coil: 0.38ohm 26g x 2 (KA1) + 36g (Ni80) Φ 3mm 6 wraps
Clapton Helix coil: 0.36ohm [28g(KA1) + 38g(Ni80)] x 2 + 26g(KA1) x 2 Φ 3mm 6 wraps
Clapception coil: KA1 0.52ohm 24g + (28g +38g) Φ 3mm 5 wraps
Tidal coil: KA1. 0.52ohm 30g x 2 (twisted) + (0.2 x 0.8mm) Φ 3mm 6 wraps

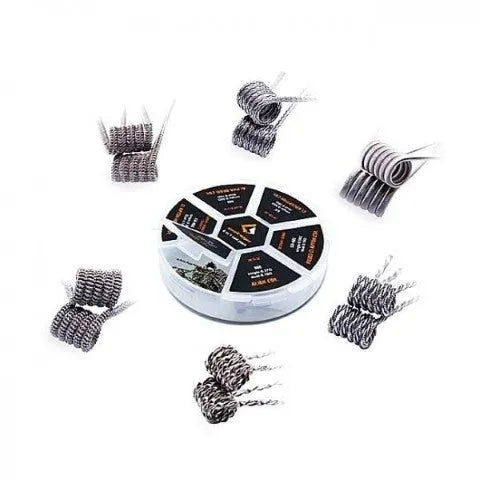

What’s in the Geekvape 6 in 1 Coil Pack:
2 x Alien coil
4 x Alpha braid coil
4 x Fused Clapton coil
2 x Clapton Helix coil
2 x Clapception coil
6 x Tidal coil
