Coilart Pre-made Vape Coils

Coilart Pre-made Vape Coils take all the hassle out of building your own coils and are also great as a back-up on the go. All are made using Kanthal A1 and all come in packs of 10.

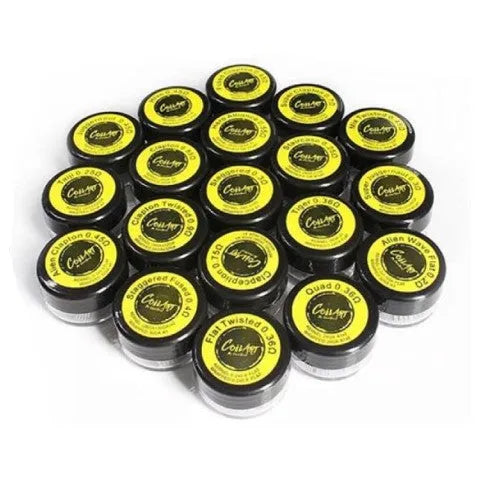

With 10 different configurations to choose from, we're sure this selection of Coilart Pre-made Vape Coils will appeal to you. From the relatively straight-forward twisted coils to the utterly brilliant Taiji, Staircase, Hero Alliance or Optimus Prime Coils

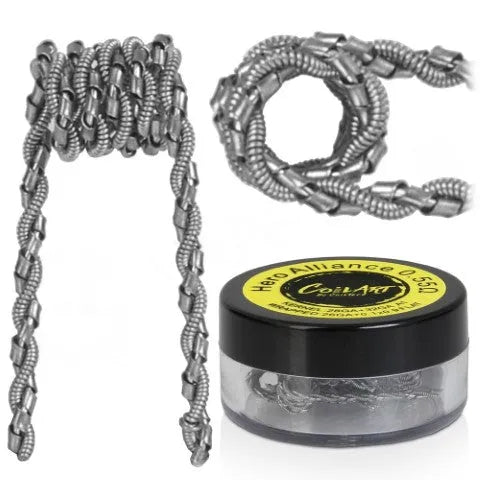

Hero Alliance Coils are a 0.55Ohm coil that is made with one Clapton wire (28g Claptonised with 32g) and one Tiger Wire (26g Claptonised with 0.1 x 0.9mm flat wire), these two wires are then twisted together

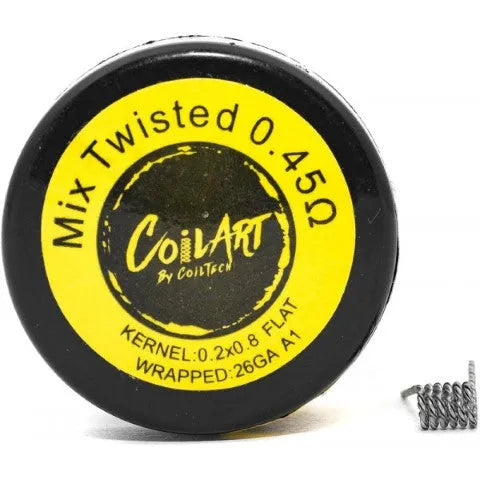

Mix Twisted is a 0.45ohm coil that is made by taking a 0.2 x 0.8mm flat Kanthal wire and a 26g regular Kanthal wire and twisting them together

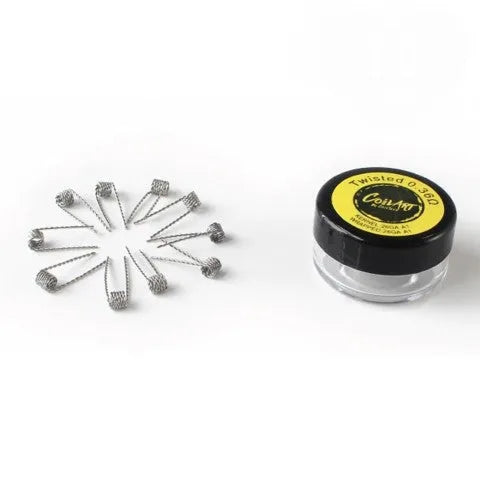

Twisted Coil is a 0.36Ohm coil that is made twisting together 2 strands of 26g Kanthal

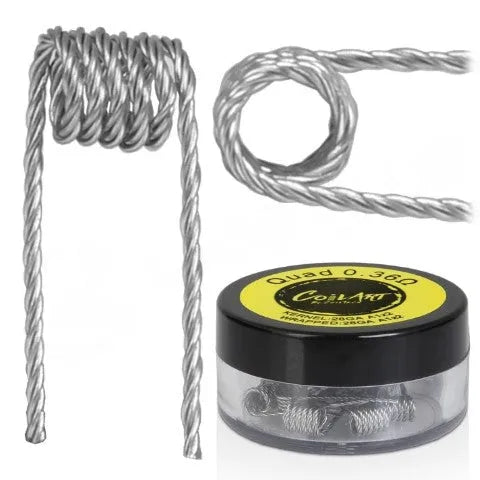

Quad Twisted Coils 0.36Ω are made by twisting together 4 strands of 28g Kanthal

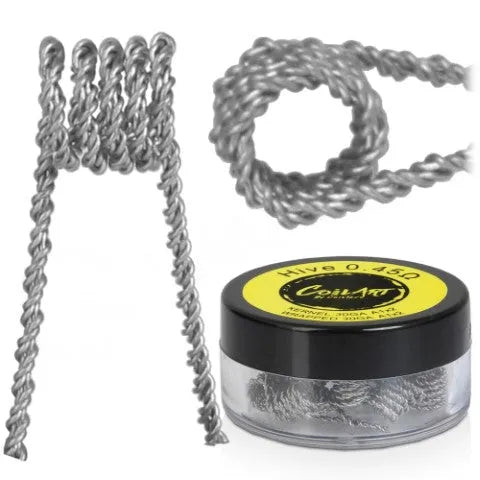

Hive Coils are a 0.45ohm coil that is made by first twisting together 2 strands of 30g Kanthal Wire, then another 2 strands of 30g Kanthal Wire are twisted together, these two resulting twisted wires are then twisted together

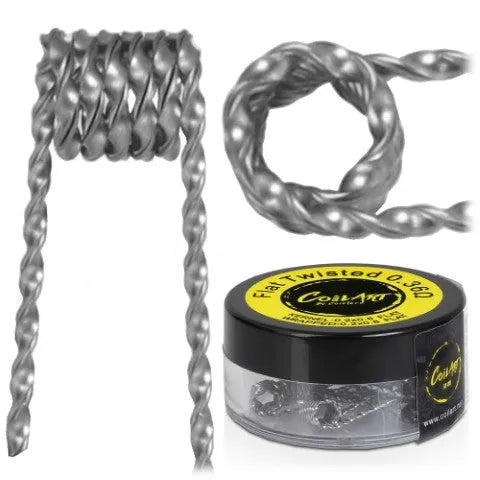

Flat Twisted Coils are a 0.36ohm coil that is made with two 0.2 x 0.8mm flat wires that are twisted together

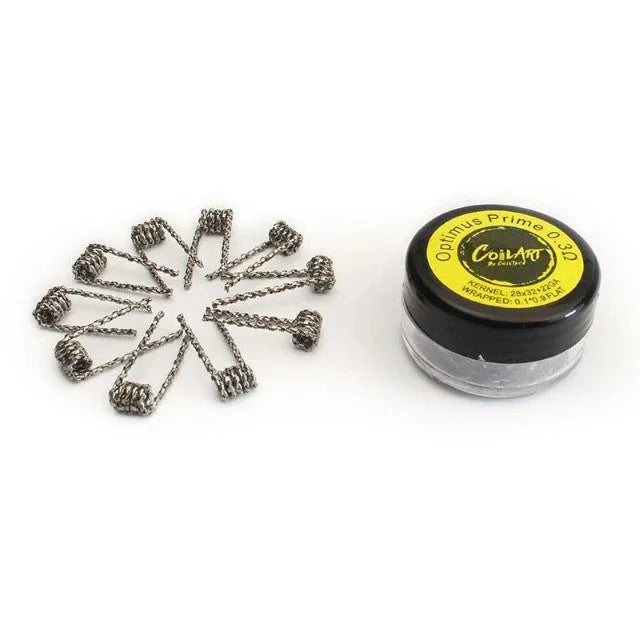

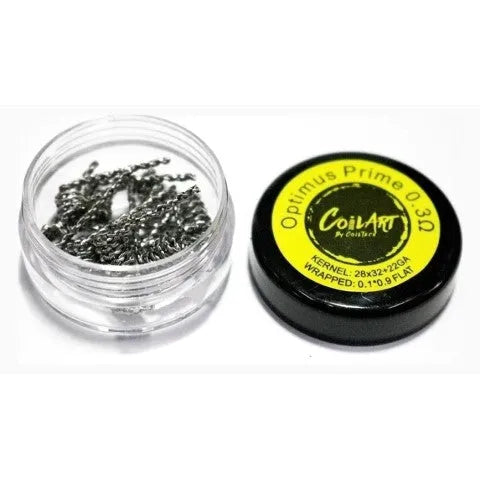

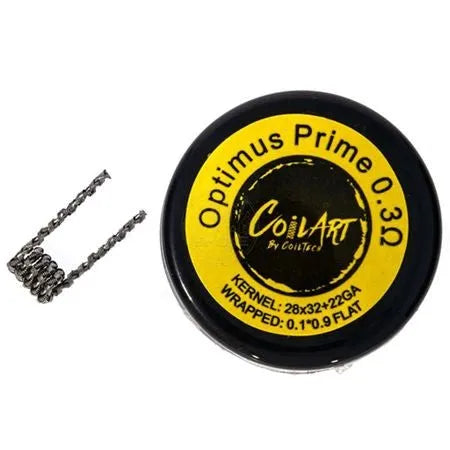

Optimus Prime Coils are a 0.30ohm coil that is made by first taking a 28g wire and Claptonising it with a 32g wire, this Clapton wire is then twisted with a 22g wire, this twisted wire is then Claptonised with a 0.1 x 0.9mm flat wire

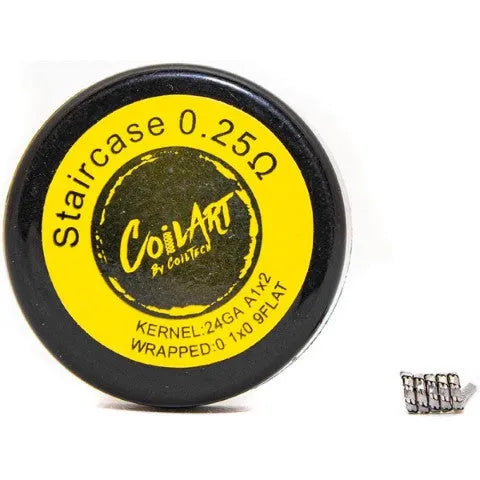

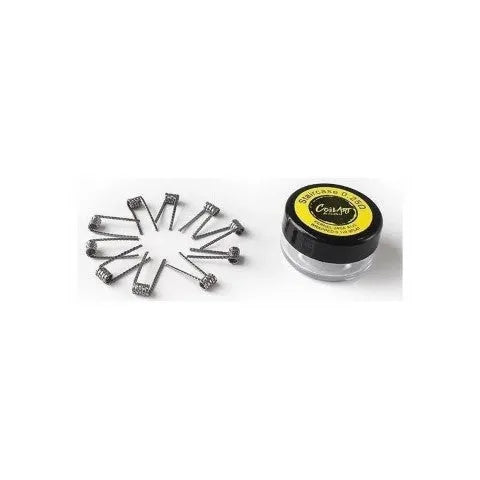

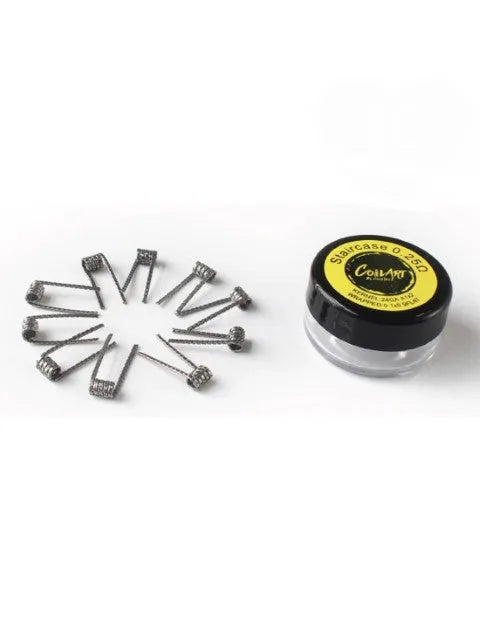

Staircase Coils are 0.25Ω coils that are made by taking 2 strands of 24g wire and Claptonising them with a 0.1 x 0.9mm flat wire

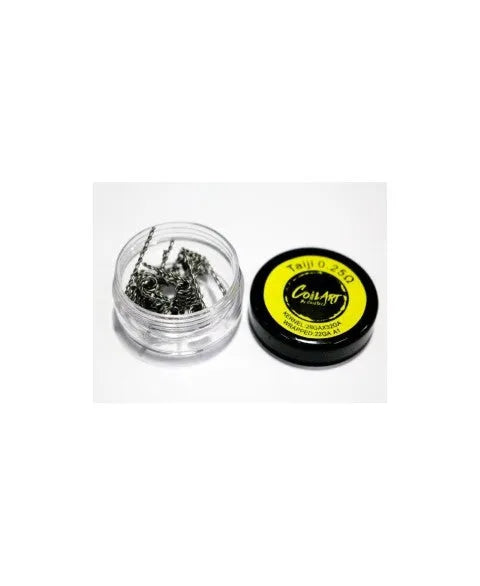

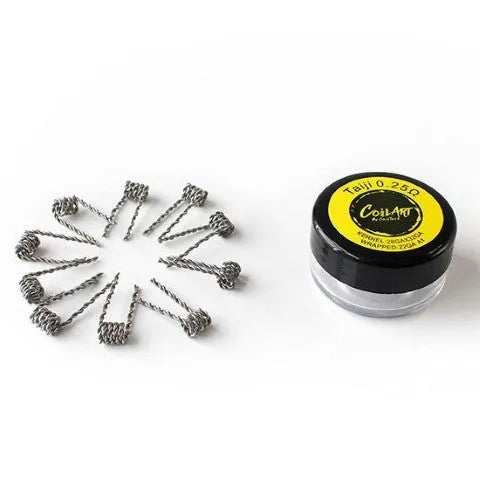

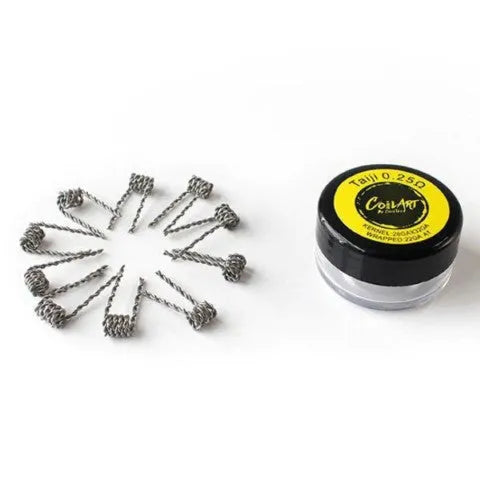

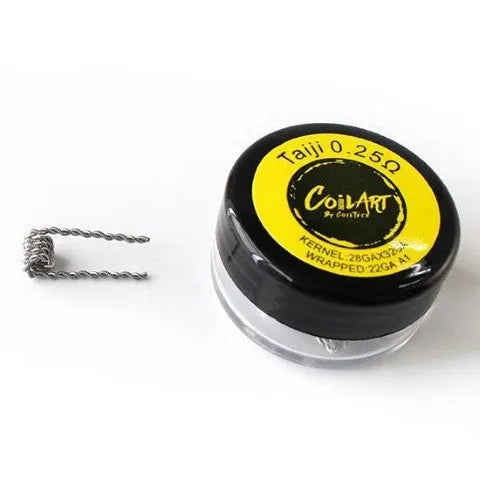

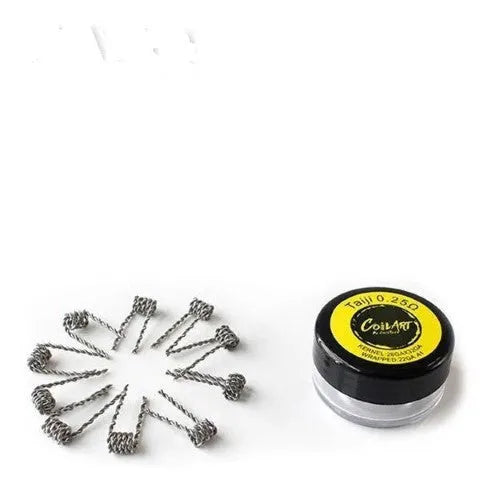

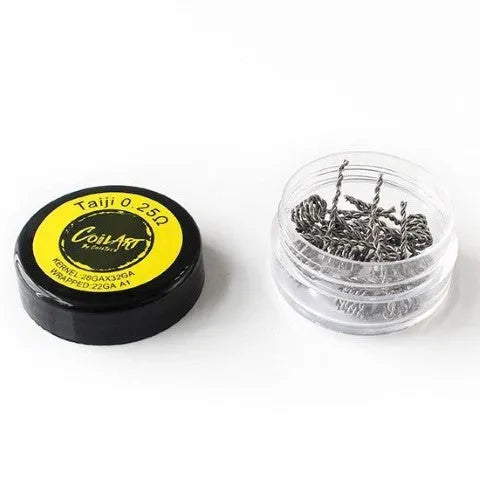

Taiji Coils are a 0.25ohm coil that are made by taking a 28g wire and Claptonising it with a 32g wire, the resulting Clapton wire is then twisted with a 22g wire

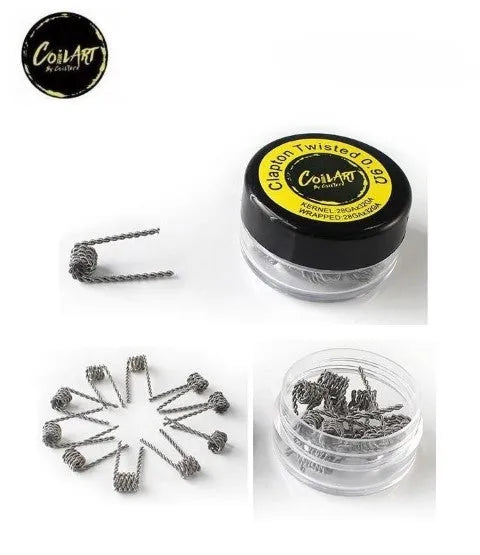

Clapton Twisted Coils are made by taking two 28g wires that are each Claptonised with 32g wire. These 2 Clapton wires are then twisted together

Coilart Pre-made Vape Coils Features:

Kanthal A1

Quick ramp up time

Easy to work with

0.55Ω - Hero Alliance Coils (28g + 32g) x (26g + (0.1mm x 0.9mm))

0.45Ω - Mix Twisted Coils (0.2mm x 0.8mm) x 26g

0.36Ω - Twisted Coils (26g x 2)

0.36Ω - Quad Coils (28g x 4)

0.45Ω - Hive Coils (30g x 30g) x (30g x 30g)

0.36Ω - Flat Twisted Coils (0.2mm x 0.8mm) + (0.2mm x 0.8mm)

0.25Ω - Staircase (24g x 2 parallel) + (0.1mm x 0.9mm)

0.30Ω - Optimus Prime (28g x 32g + 22g) + (0.1mm x 0.9mm)

0.90Ω - Clapton Twisted (28g + 32g) x (28g + 32g)

0.25Ω - Taiji (28g + 32g) x 22g

What's in the tub:

10 x Coilart Pre-made Vape Coils

Important information about Coilart Pre-made Vape Coils:

Rebuildable coils like these can only be used with rebuildable atomisers, such as RDTAs, RTAs and RDAs. We would only recommend these types of coils to advanced vapers, who have a thorough understanding of vaping, Ohm’s law and battery safety. Rebuildable coils will need to have cotton wicks fitted to them before use, these are available separately.

Before use, all Coilart Pre-made Vape Coils should be tested on Ohmmeter (never a vape device) to check they are registering the correct resistance and are firing correctly. Please note that when using a dual coil build, the resistance of your coils will halve. For example, two 0.4 Ohm coils fitted to a rebuildable atomiser will register 0.2 Ohm. Different types of coil can not be mixed and matched.
