Wanna level up your single-mesh vape? Enter the Wotofo Profile PS RDA! Once again, Wotofo have collaborated with Mrjustright1 to bring you another amazing RDA.
Usually with a dual coil RDA the coils will be running in parallel effectively halving the resistance of both coils and requiring double the power to run.

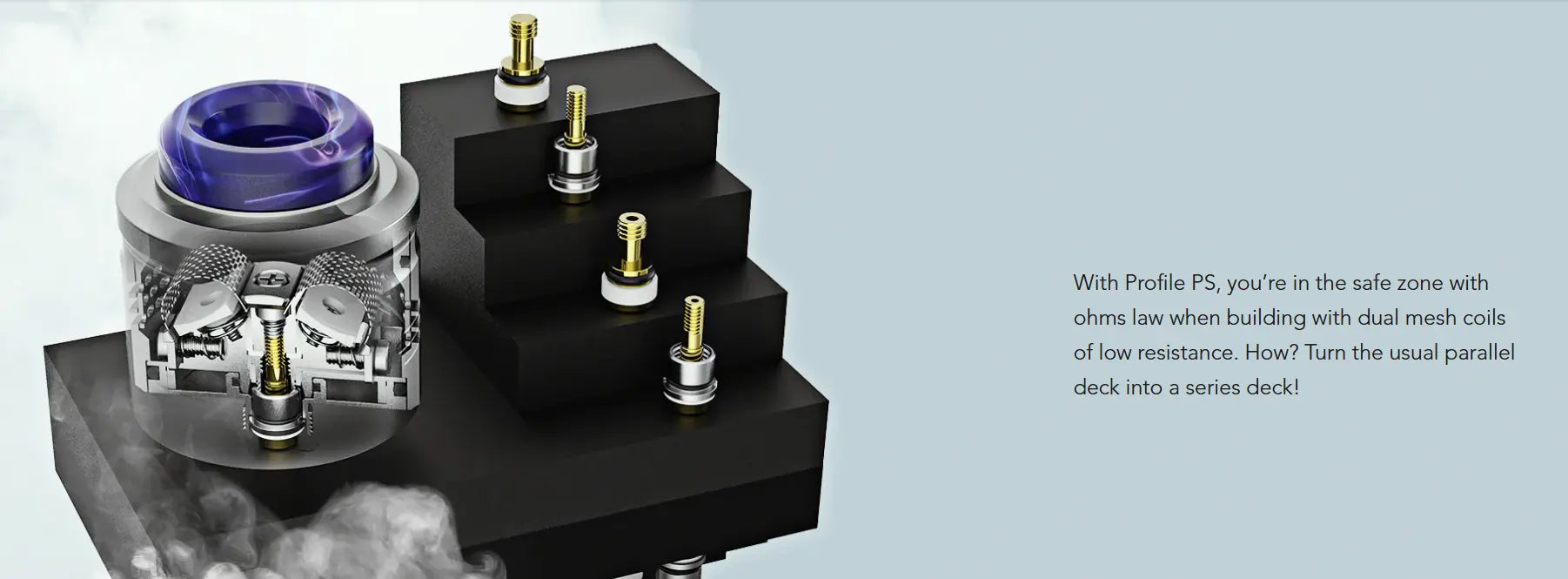

With the Wotofo Profile PS RDA you have the choice of running it as a parallel RDA OR a series RDA. Running it as a series deck will effectively double the resistance of the coils.
A very easy way of visualising it is to imagine 2 identical wires. If you lay those 2 wires side by side and connect them to a power source then you are allowing twice as much current (Amps) to flow through than would flow through the single wire, because you have doubled the cross-section of the wire. Conversely, if you were to lay the 2 wires end to end then you will only be able to drive half as much current through the wire as you have effectively doubled its length.

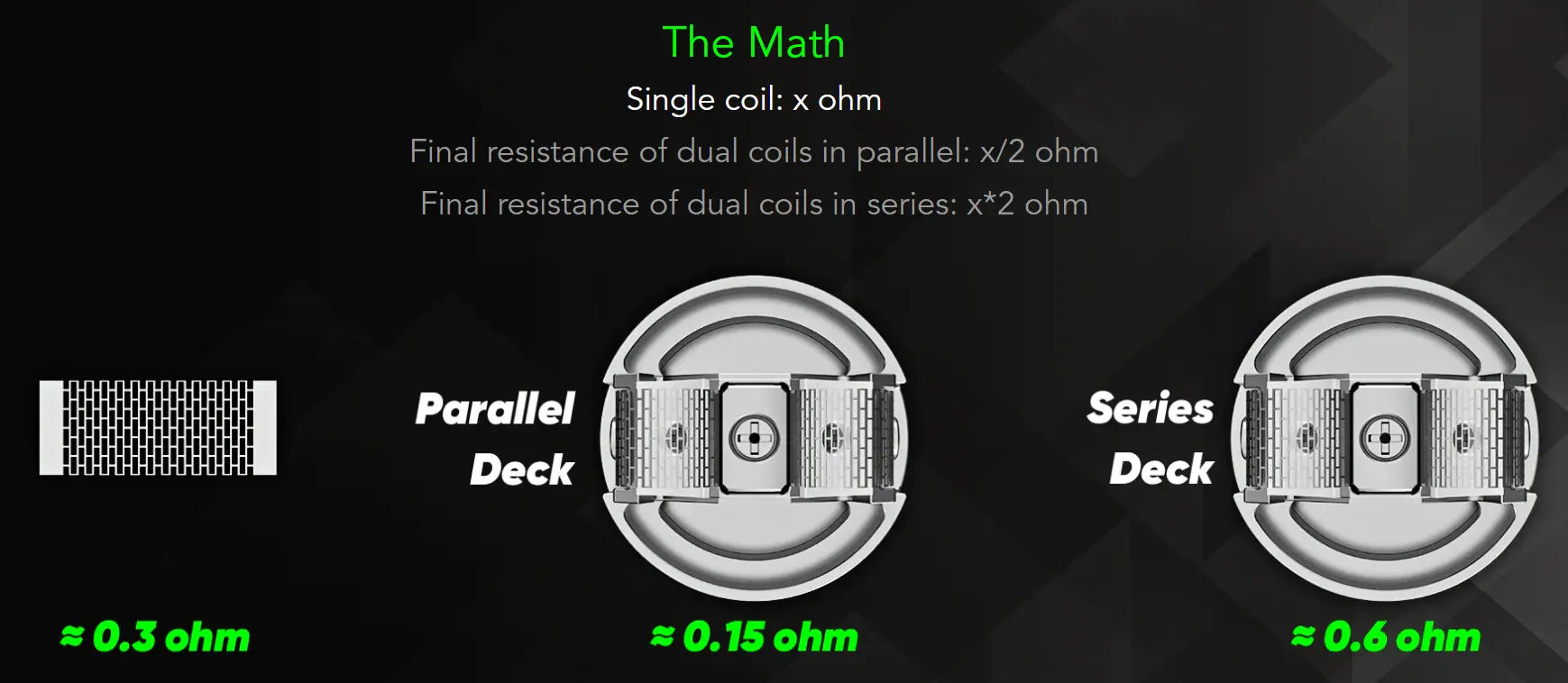

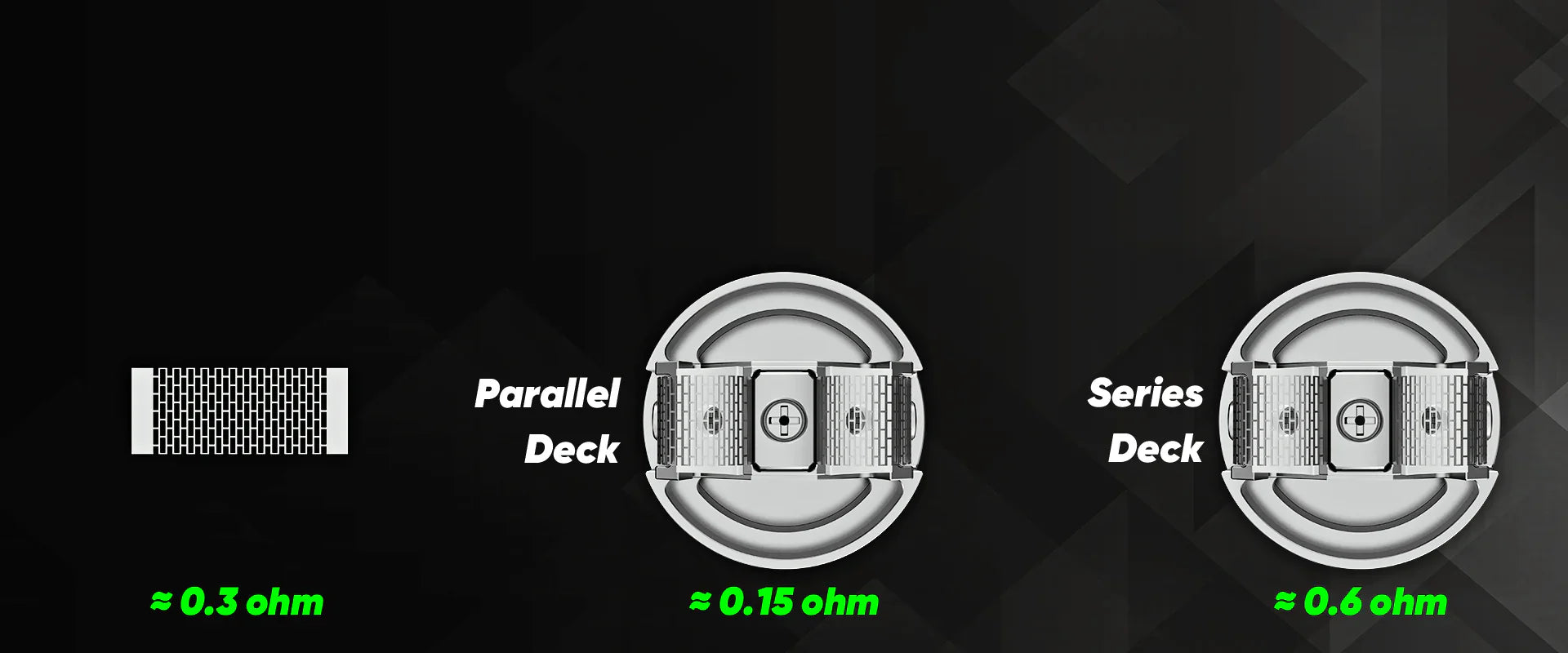

The Maths:
Single coil: x ohm
Final resistance of dual coils in parallel: x/2 ohm
Final resistance of dual coils in series: x*2 ohm

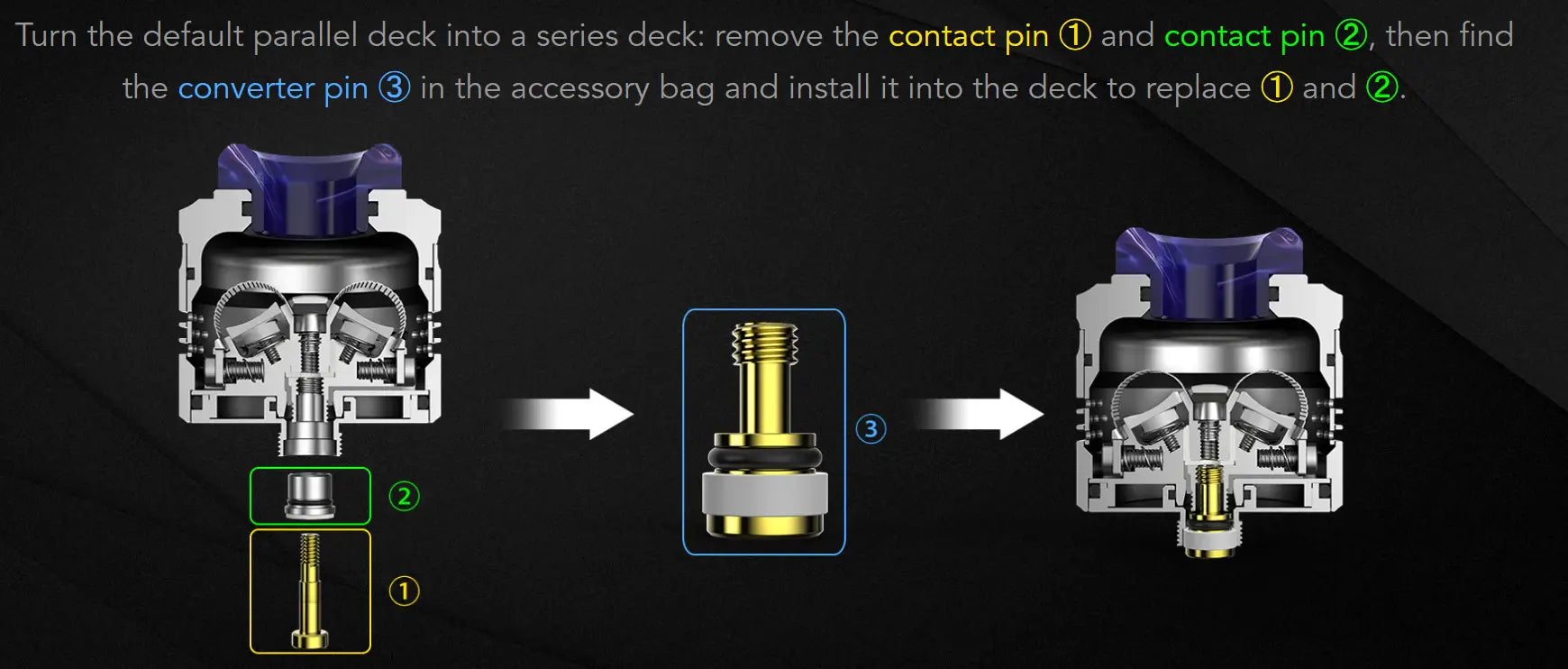

So now you can have either parallel builds or series builds of dual mesh coils on only one deck, with just an easy switch of a pin!
All the original Profile meshes can work with the Wotofo Profile PS RDA. And a new mesh designed especially for the Profile PS is now added to the family, which means you can also use it on your Profile RDA.
Wotofo Mesh Coils:

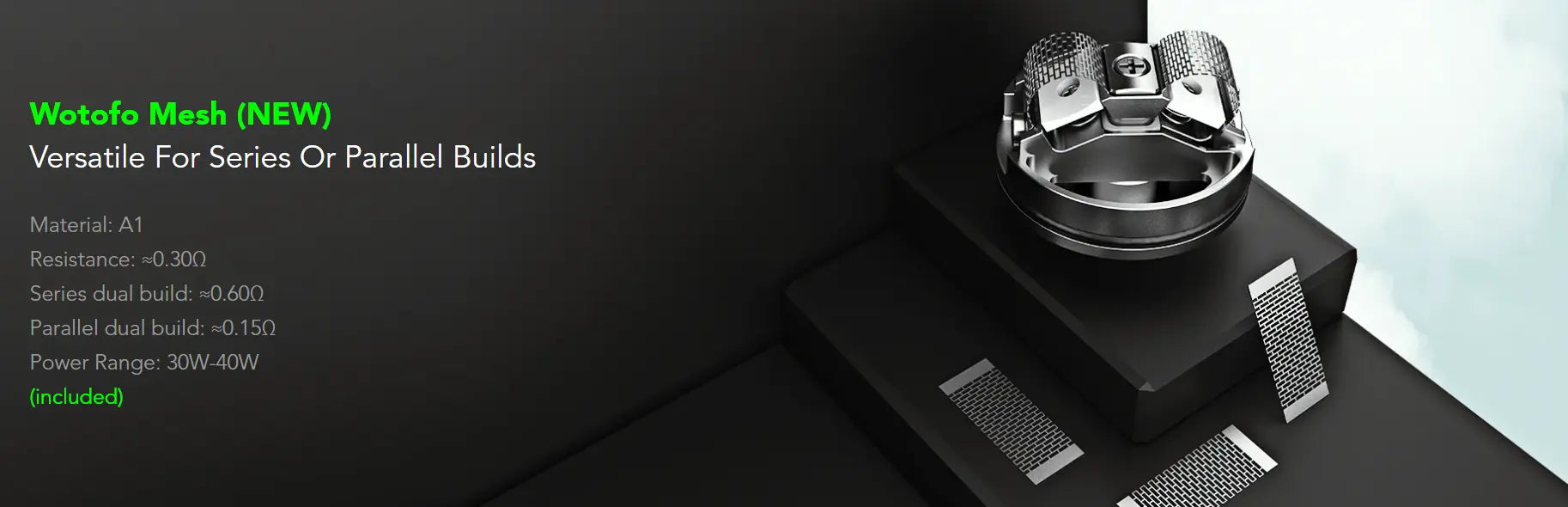

New Wotofo Mesh – Versatile for series or parallel builds
Material: A1
Resistance: ≈0.30Ω
Series dual build: ≈0.60Ω
Parallel dual build: ≈0.15Ω
Power Range: 30W-40W
(included)

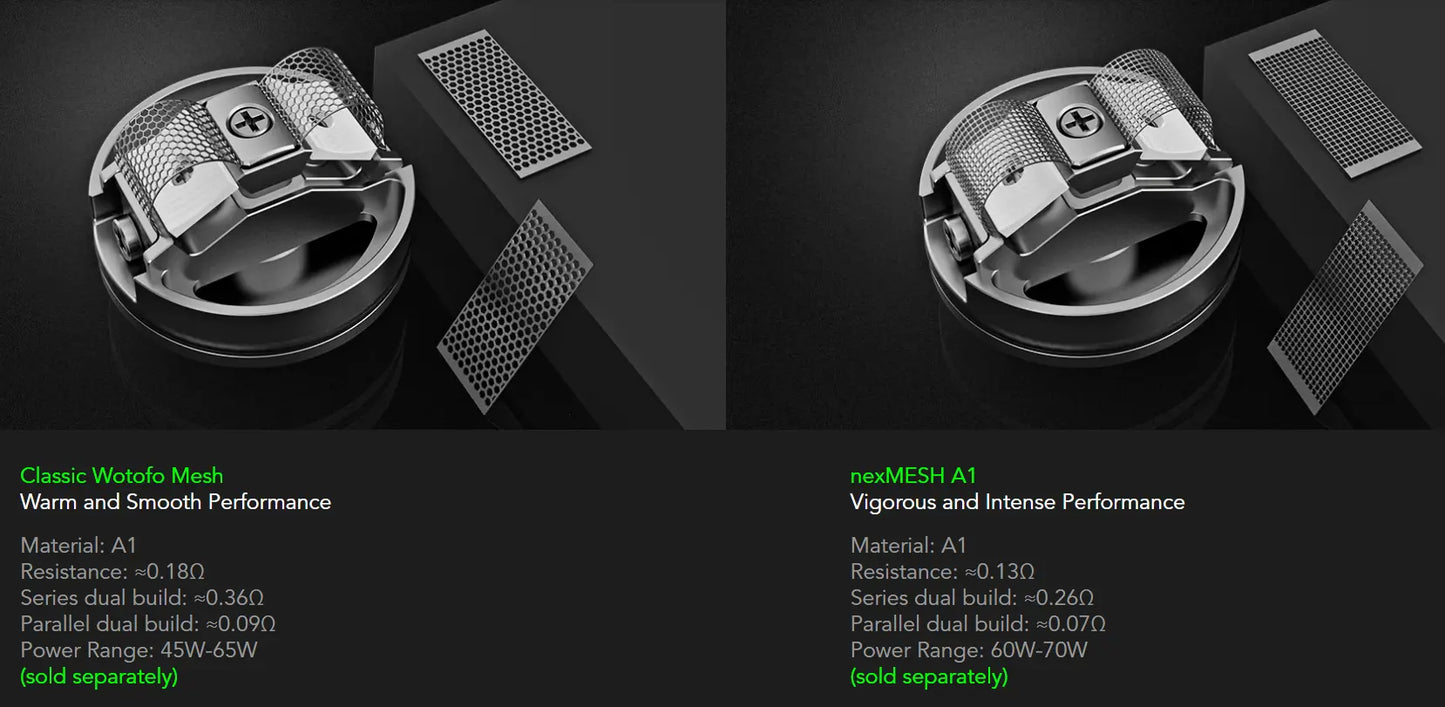

Classic Wotofo Mesh - Warm and Smooth Performance
Material: A1
Resistance: ≈0.18Ω
Series dual build: ≈0.36Ω
Parallel dual build: ≈0.09Ω
Power Range: 45W-65W
(sold separately)

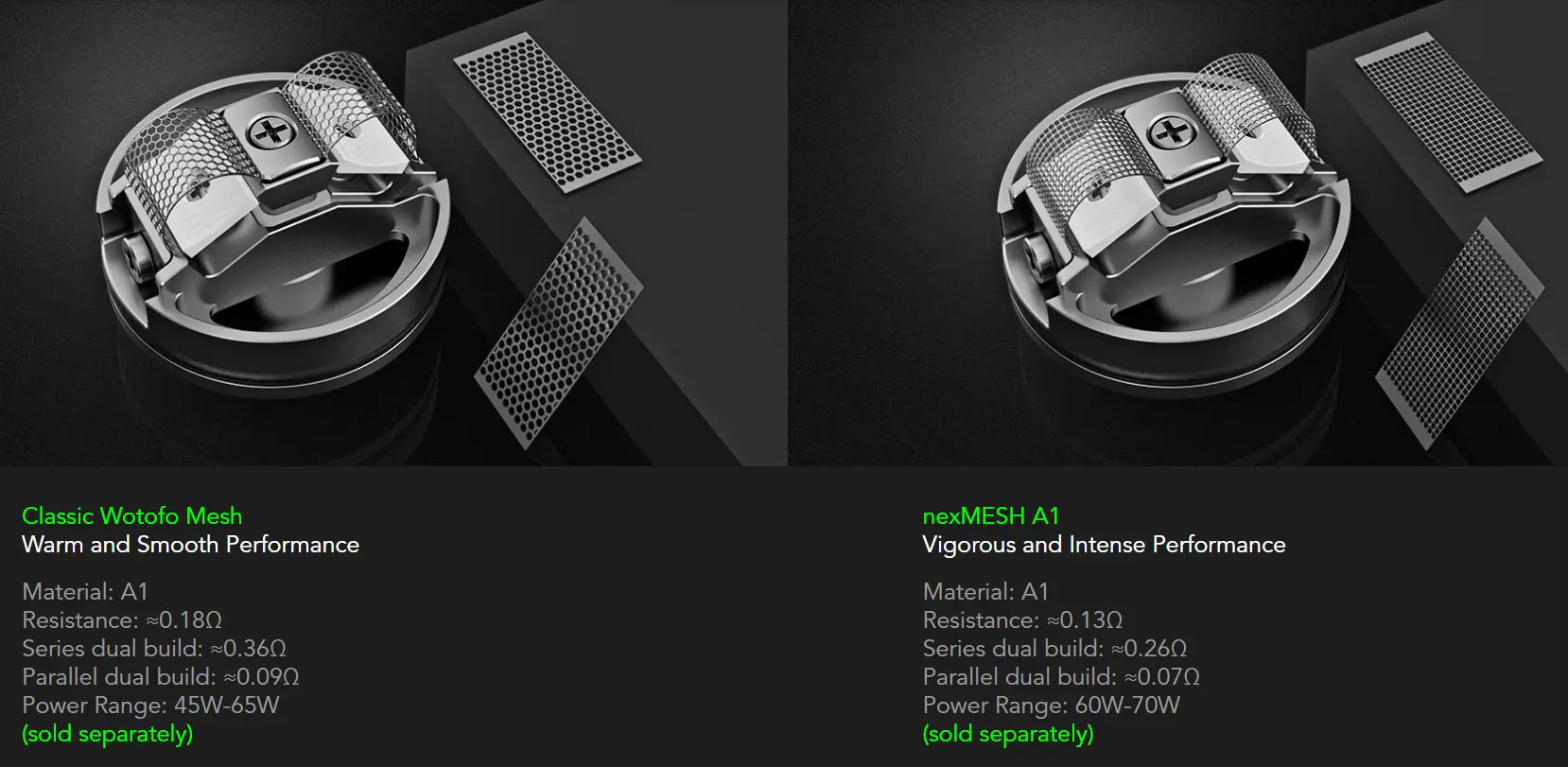

nexMESH A1 - Vigorous and Intense Performance
Material: A1
Resistance: ≈0.13Ω
Series dual build: ≈0.26Ω
Parallel dual build: ≈0.07Ω
Power Range: 60W-70W
(sold separately)

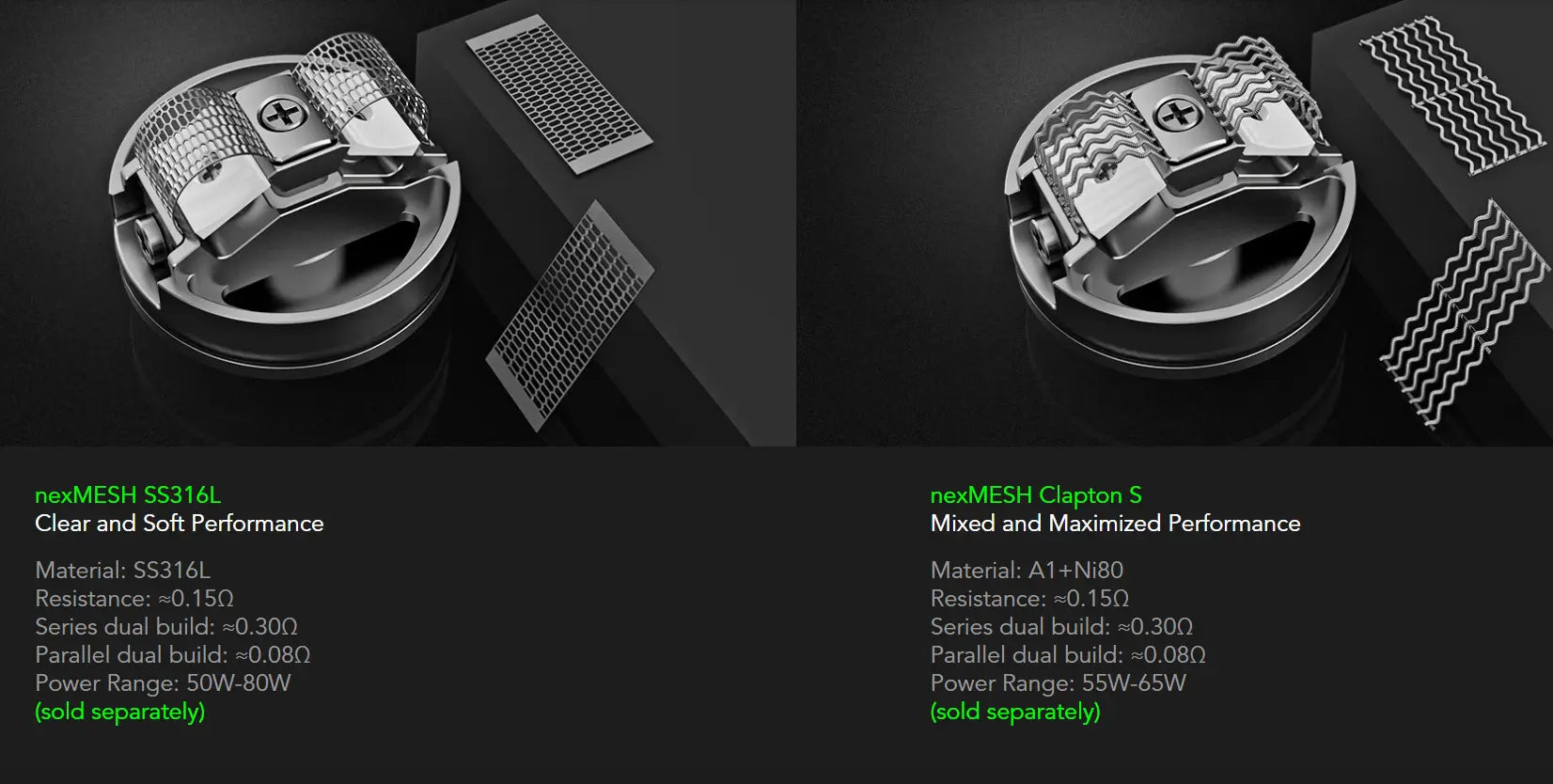

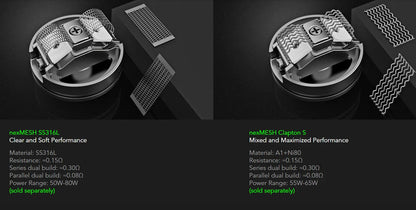

nexMESH SS316L - Clear and Soft Performance
Material: SS316L
Resistance: ≈0.15Ω
Series dual build: ≈0.30Ω
Parallel dual build: ≈0.08Ω
Power Range: 50W-80W
(sold separately)
nexMESH Clapton S - Mixed and Maximized Performance
Material: A1+Ni80
Resistance: ≈0.15Ω
Series dual build: ≈0.30Ω
Parallel dual build: ≈0.08Ω
Power Range: 55W-65W
(sold separately)
We also stock a massive range of mesh coils by Coilology, Vandy Vape, Hellvape and Optima.
Wotofo Profile PS RDA Show-case:

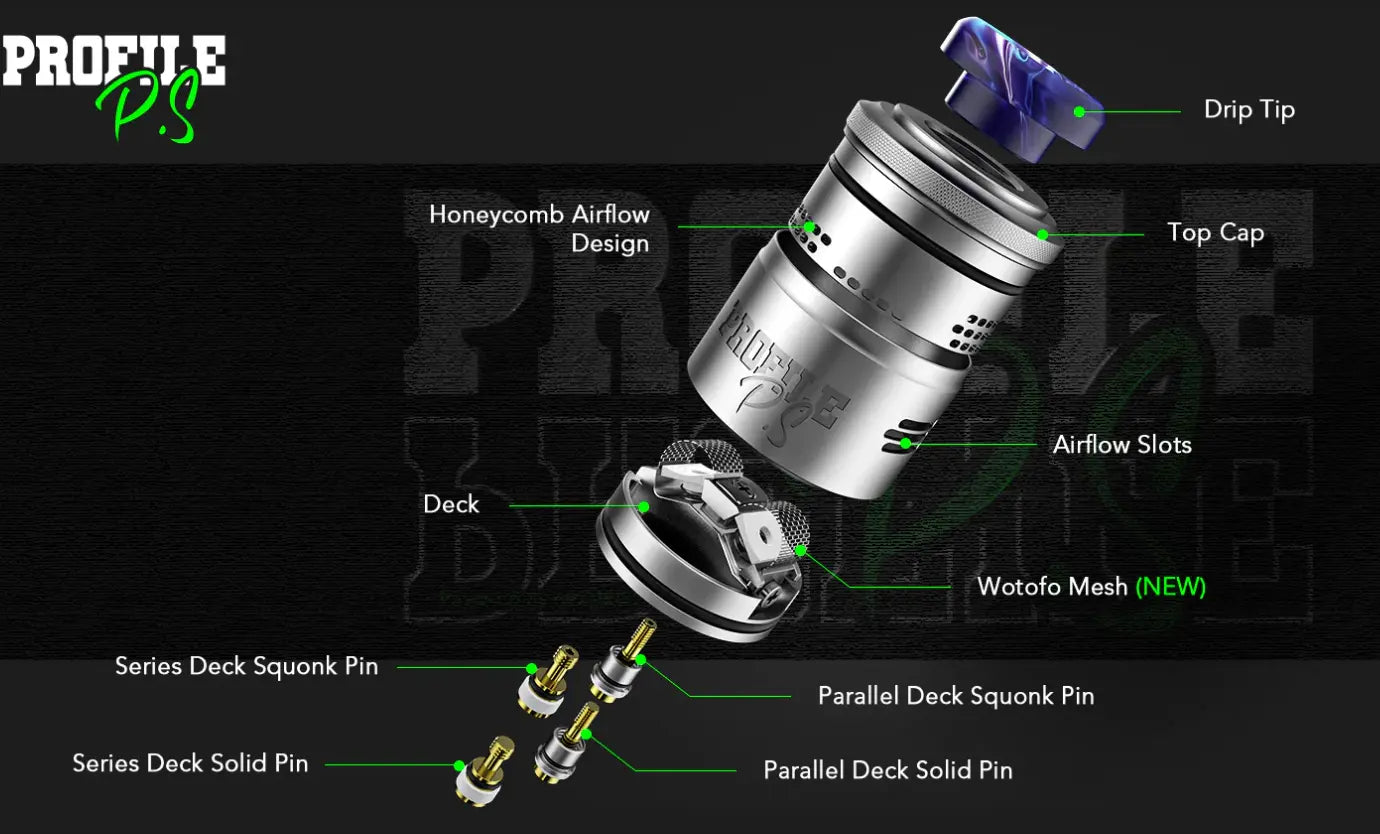

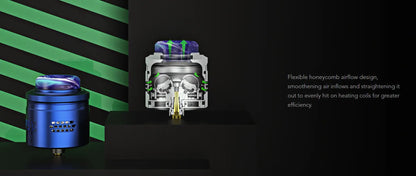

Flexible honeycomb airflow design, smoothening air inflows and straightening it out to evenly hit on heating coils for greater efficiency.

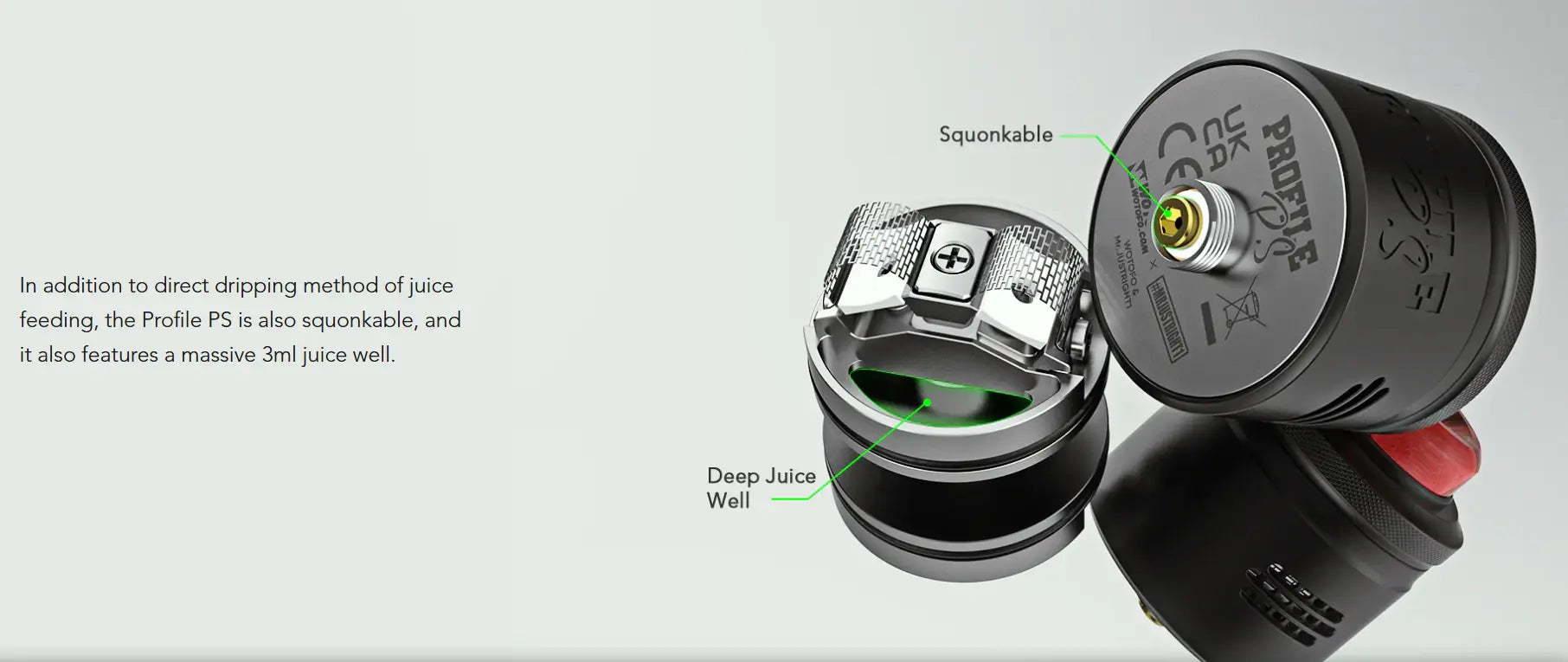

In addition to direct dripping method of juice feeding, the Profile PS is also squonkable, and it also features a massive juice well.

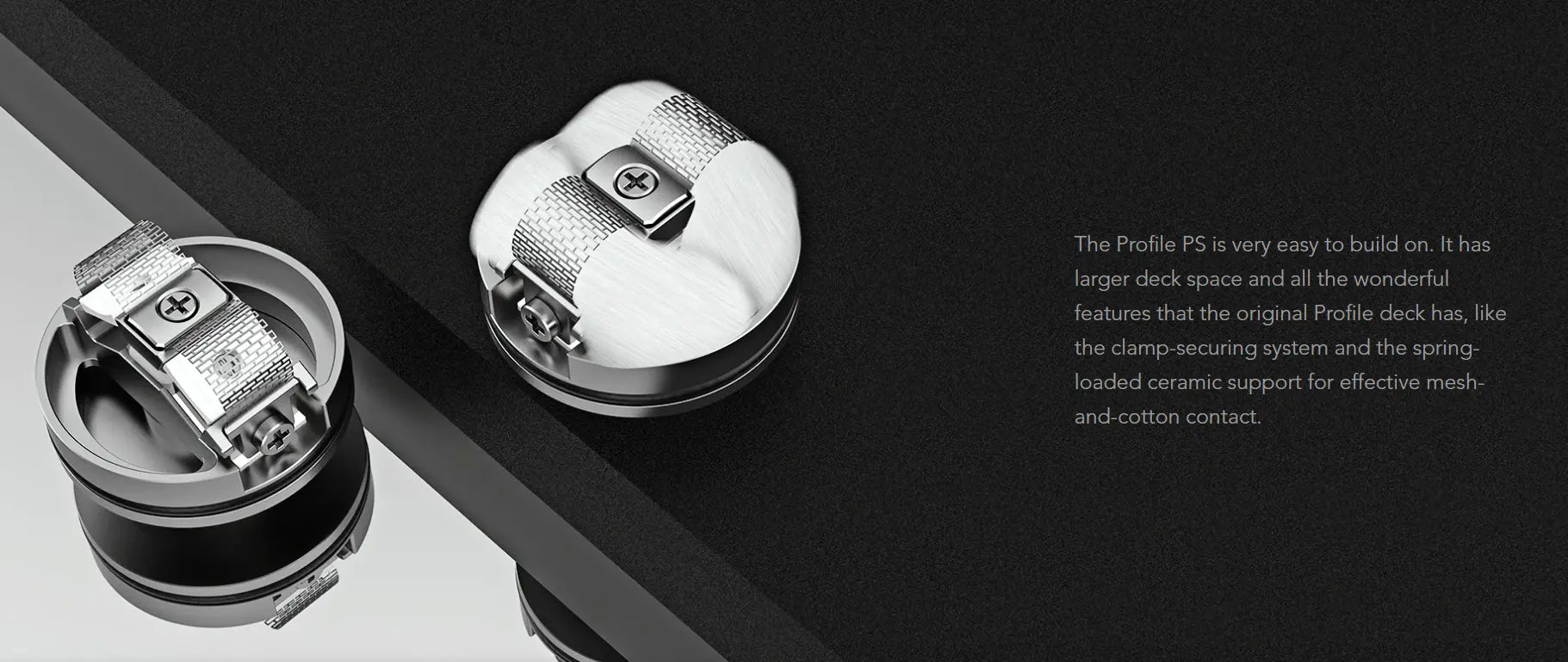

The Profile PS is very easy to build on. It has larger deck space and all the wonderful features that the original Profile deck has, like the clamp-securing system and the spring-loaded ceramic support for effective mesh-and-cotton contact.

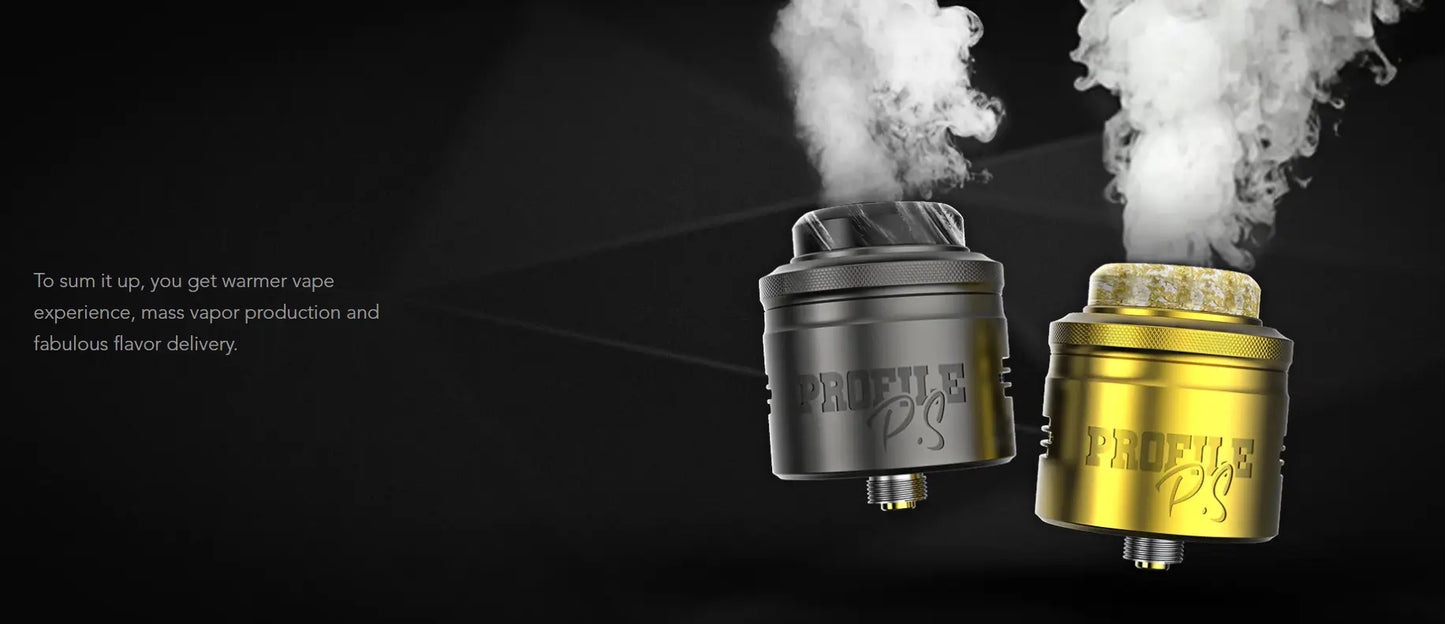

To sum it up, you get warmer vape experience, mass vapour production and fabulous flavour delivery.

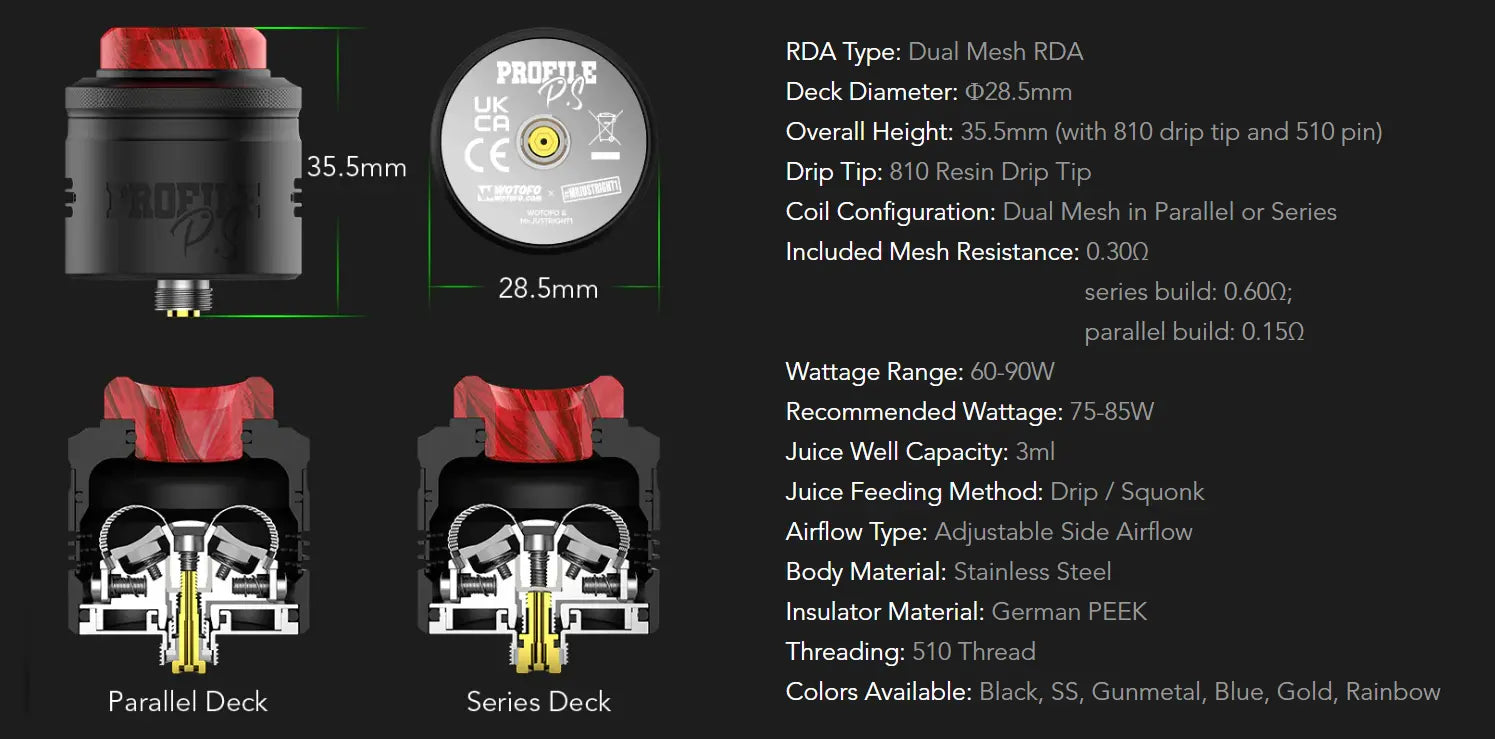

Wotofo Profile PS RDA Features:
RDA Type: Dual Mesh RDA
Deck Diameter: Ф28.5mm
Overall Height: 35.5mm (with 810 drip tip and 510 pin)
Drip Tip: 810 Resin Drip Tip
Coil Configuration: Dual Mesh in Parallel or Series
Included Mesh Resistance: 0.30Ω (series build: 0.60Ω; parallel build: 0.15Ω)
