Kuro Concepts Koiler
Kuro Concepts Koiler
Couldn't load pickup availability
This is an age restricted product. You must be 18 or older in order to purchase this item. An age check will be completed during checkout using OneID. This process works automatically and you do not have to take pictures of passports or driving licences and you will NOT be asked for sensitive information. Learn more about OneID.
The Kuro Concepts Koilers Wire Coiling Tool is the ultimate and revolutionary tool for your vape coil builds. Making coils is now a breeze.
Made in the USA, the Kuro Concepts Koiler is a revolutionary, ultra functionary auto coiler that will create tight, uniform coils in just seconds. Build from rounded Kanthal, SS or Nickel wire or any exotic wires, such as the Pirate Coil or Coilology wires with a simple twist of your fingers.
Kuro Concepts Koiler Features:
Revolutionary Patent Pending Micro Coiling Technology
Insert your wire, rotate the top cap, and get that perfect hand-made coil
Light weight and portable
Unique styling with each colour representing a different coil size
Made In USA

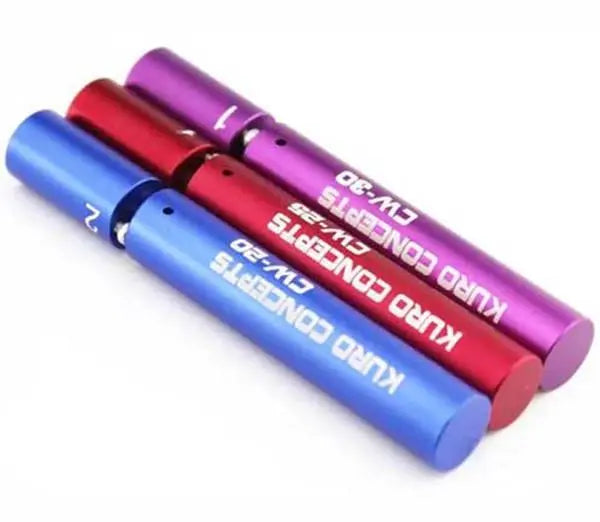

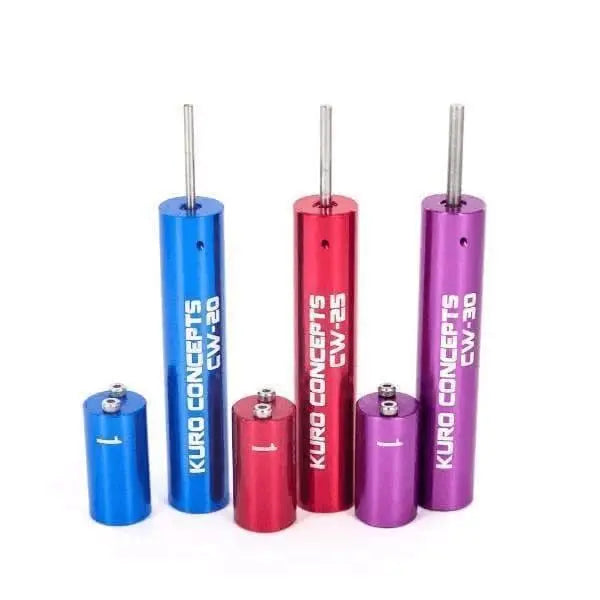

Kuro Concepts Koilers come in 3 types:

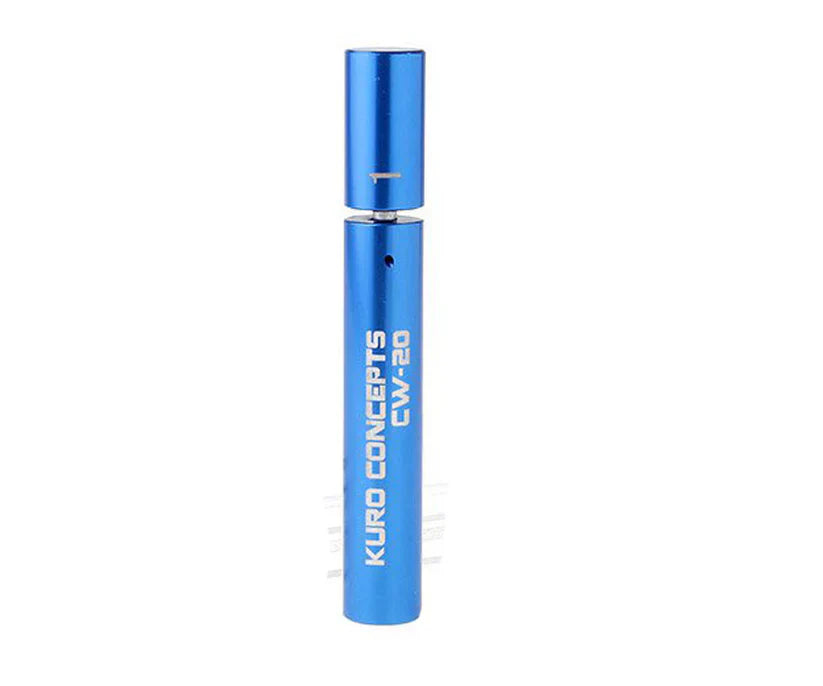

CW-20 Makes 2.0mm inner diameter coils

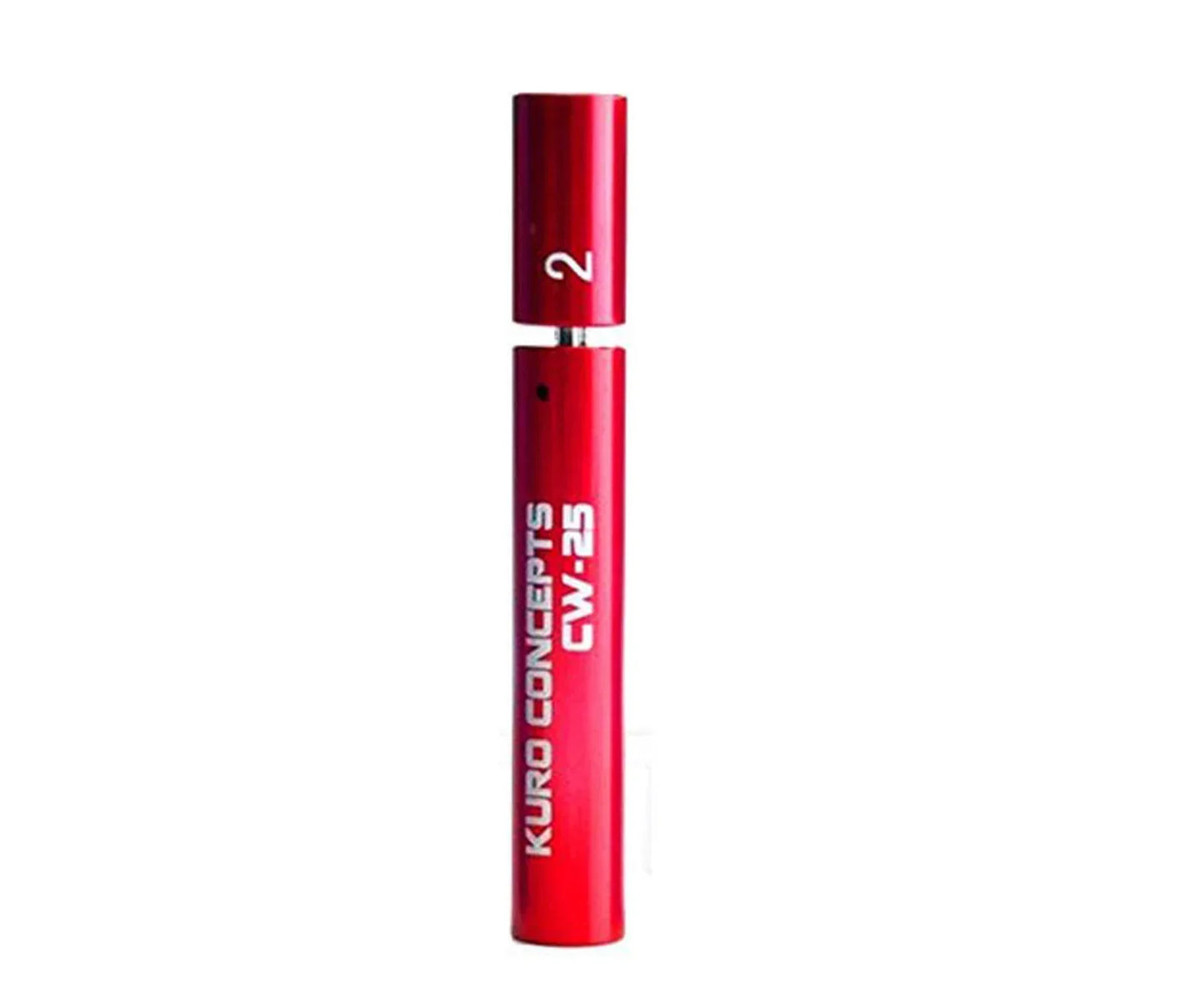

CW-25 Makes 2.5mm inner diameter coils

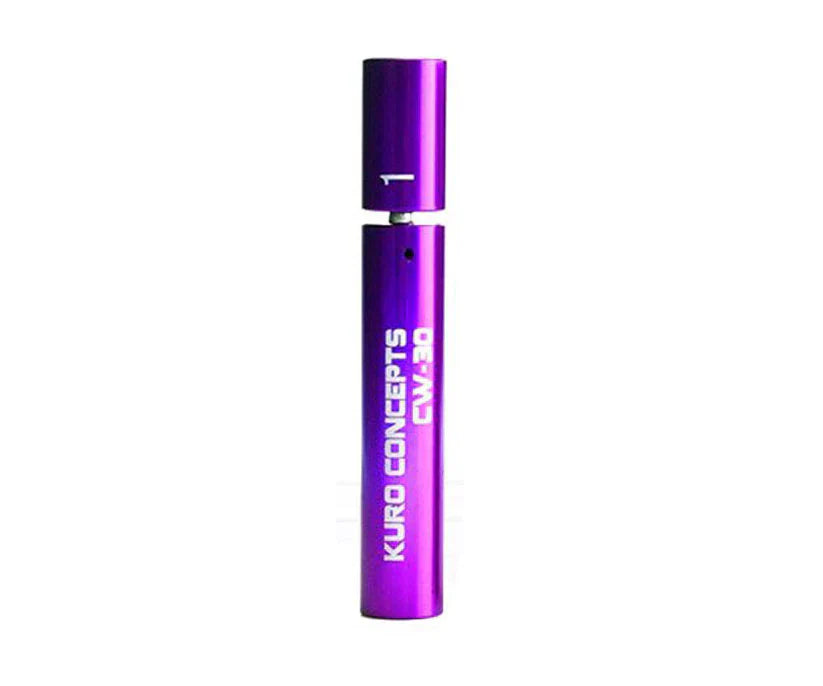

CW-30 Makes 3.0mm inner diameter coils

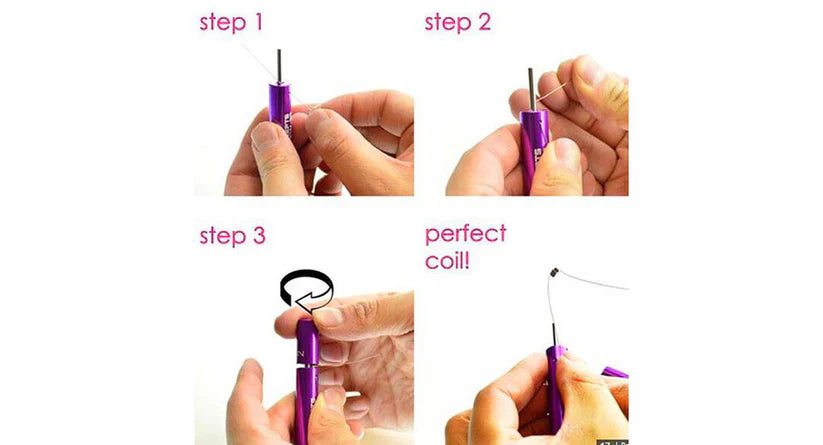

Kuro Concepts Koiler Directions:

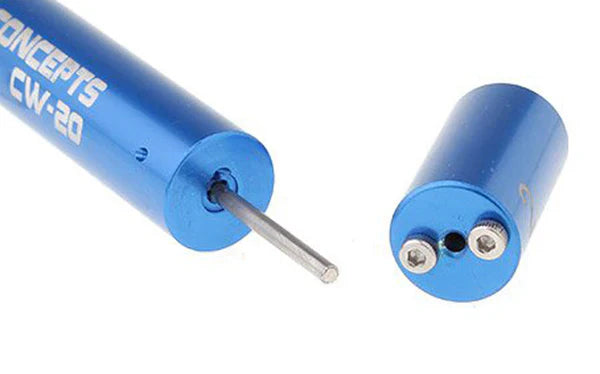

Insert the socket screw into the hole of the handle section.
For 26 gauge wire and higher, use screw number 1 of the coiler section.
For anything under 24 gauge wire, use screw number 2 of the coiler section.
Insert wire through hole on the side of the handle. Leave about 1/2″ of the wire protruding from the hole. Hold the end of the wire against the handle so it won’t pull through.
Pull the loose end of the wire around the shaft.
Slide the winder section over the shaft with the pin facing toward the handle.
Turn the winder section so that it catches the wire and starts wrapping it around the shaft. Keep light pressure against handle while winding. Excessive pressure will force smaller gauge wire to wrap over itself.
When finished, remove winder and straighten the wire end that protrudes from the hole in the handle.
Push up on the wire to slide coil up. Carefully grab the coil at the bottom to slide it off the shaft.
Note: The coiler winds the coils with the loops touching each other. This can initially give wrong resistance values without first burning in the coil. Care must be taken when first firing the device with a new coil. Carefully pulse the device to bring temperature up slowly so you don't create a “hot leg” and potentially damage the coil. Rake the coil lightly in between pulsing to improve the break in process. Pre burning or oxidizing the wire before making the coil may also help.
What's in the box:
Kuro Concepts Koiler
