Innokin Liftbox Bastion Squonk Mod

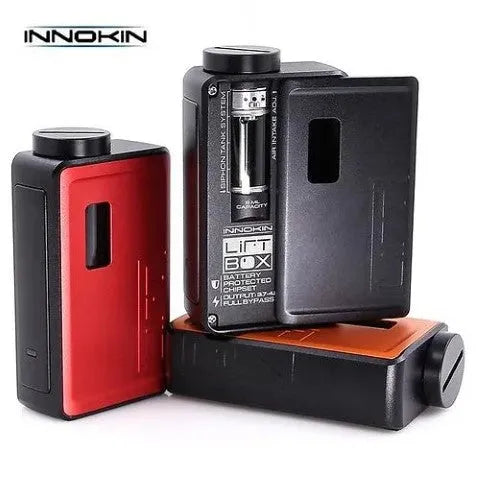

The Innokin Liftbox Bastion Squonk Mod is a one-of-a-kind auto-squonker. It comes with a built-in, 8ml syphon tank that automatically feeds e-liquid up into your own squonking RDA.

Although it has the cool look of a mechanical squonking box, the Liftbox has a basic control chip with three essential vaping safety features. This revolutionary Innokin syphon mod runs on a single 18650 battery (not supplied).

The Liftbox measures 82.6mm tall x 50.8mm long x 25.4mm wide. This means that squonk dripping atomizers up to 25mm in diameter will fit on top of it without overhang.

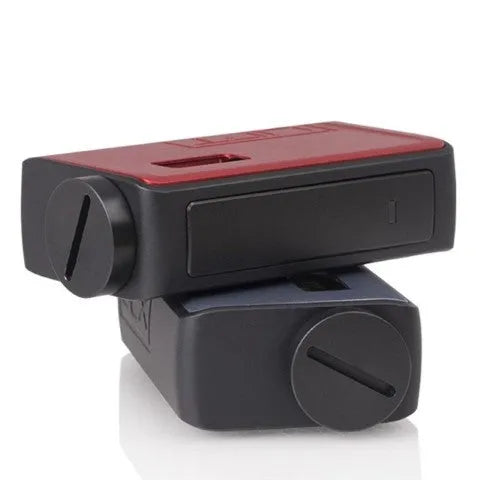

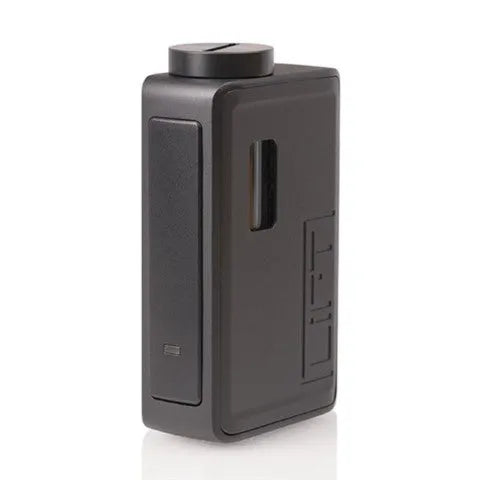

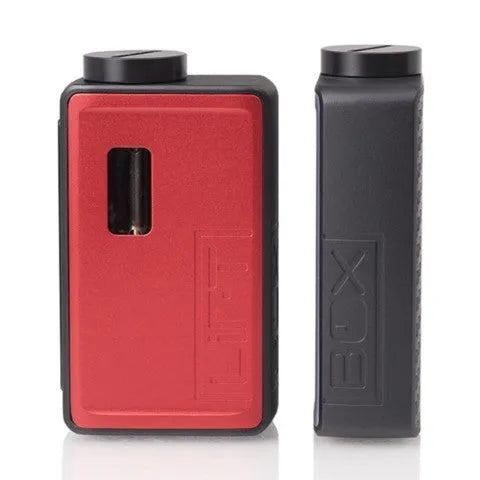

When your Innokin Liftbox Bastion Squonk Mod is delivered, you’ll see that the 510 connector is protected by a screw-down cap. The cap prevents gunge from falling into the glass e juice tank when there isn’t a squonk RDA connected. With the top-cap removed, there’s plenty of space available to fill the tank with 8ml of e liquid. The Liftbox mod’s removable front panel has a rectangular cut-out offering a clear view of your e liquid level.

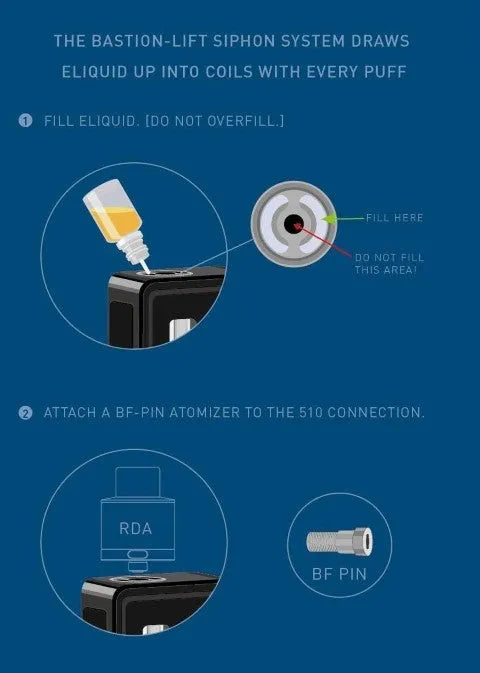

For the special LIFT syphon tank to work, a bottom-feed squonk pin is essential on your RDA. The syphon tank actually uses internal air pressure to force e liquid up through the squonk pin, into your RDA’s build-deck.

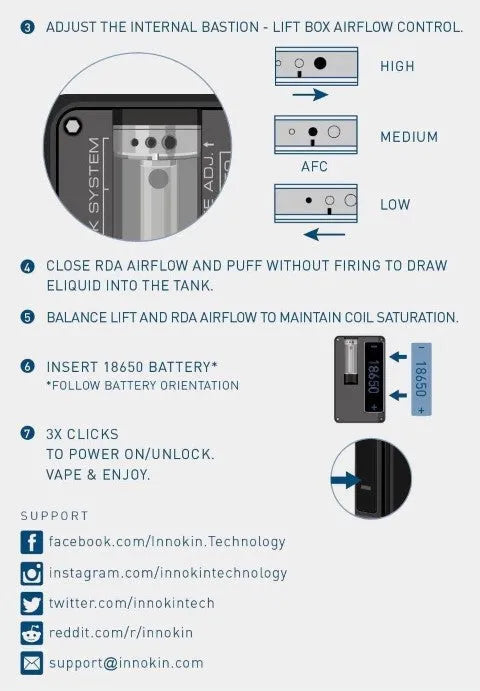

With the LIFT tank filled, simply connect your bottom-feed, squonking RDA with the atomizer’s airflow set to the closed position. Before switching on the Innokin Liftbox Bastion Squonk Mod, take a few draws from your RDA – this will set-up the air pressure required to feed e juice up into the build deck. At this point, you’ll need to play with a combination of RDA and LIFT tank airflow settings until you see that your coil wicks are being continuously saturated with each draw.

When you’re ready to vape, three clicks on the stylish Fire bar will activate the mod. Along with built-in atomizer short circuit and battery protection capability, the Liftbox also has a USB battery charging facility. A bright LED on the Fire bar uses traffic-light colours to indicate the charge status of the single 18650 battery. This is a direct output device that feeds full remaining battery power to a connected squonking RDA.

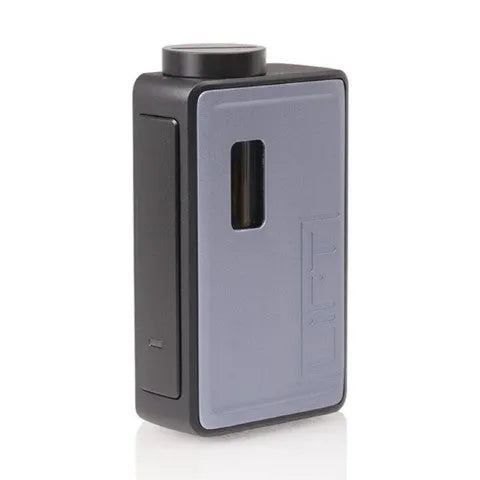

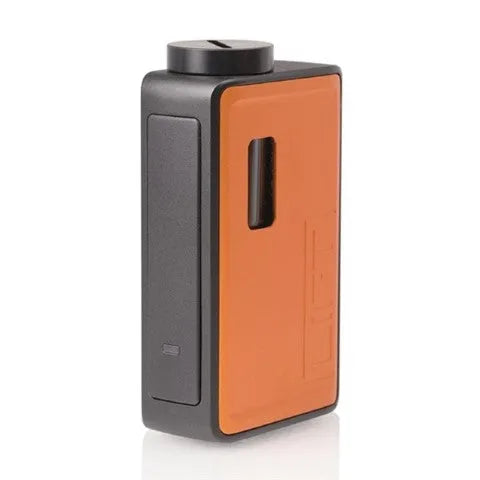

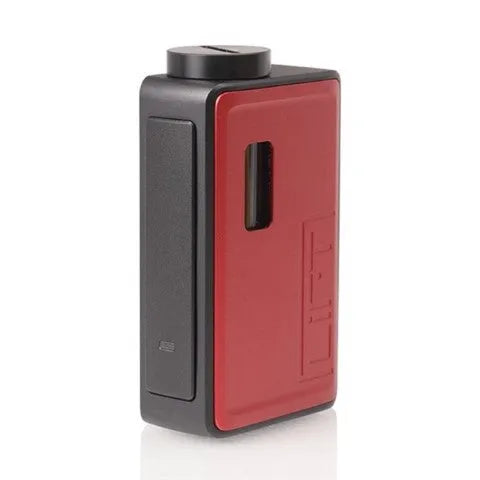

With clean, fashionable design and an authentic carbon-fibre panel on the rear, the Innokin Liftbox Bastion Squonk Mod can be ordered with a Black, Orange, Red, Grey, or Green.

Innokin Liftbox Bastion Squonk Mod Features:

Size: 82.6mm tall, 50.8mm long, 25.4mm wide

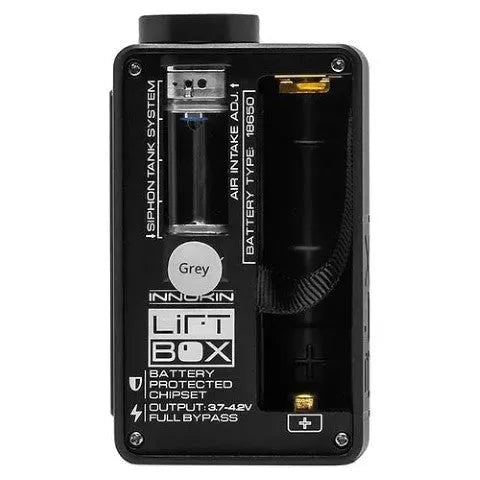

Internal LIFT syphon tank capacity: 8ml

Comes with 3 adjustable syphon airflow settings

Metallic parts: Aluminium

Tank: Reinforced glass

Will take squonk RDA’s up to 25mm diameter without overhang

Squonk RDA not included

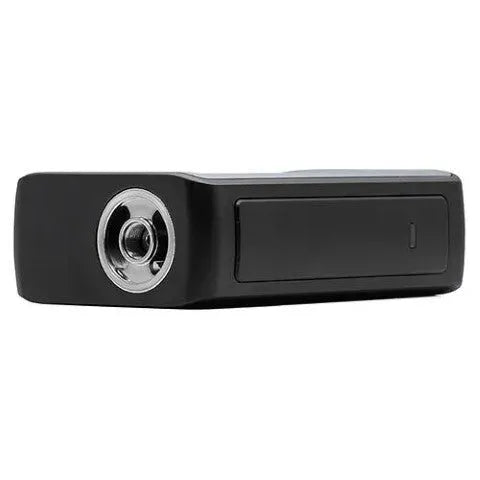

Tank connection: Special LIFT 510 bottom feed tank connector

Style: Mid power, direct output mod with built-in syphon e-liquid feed system

Operating mode: Direct output – remaining battery voltage applied to RDA

Cool logo and tank viewing window on front panel

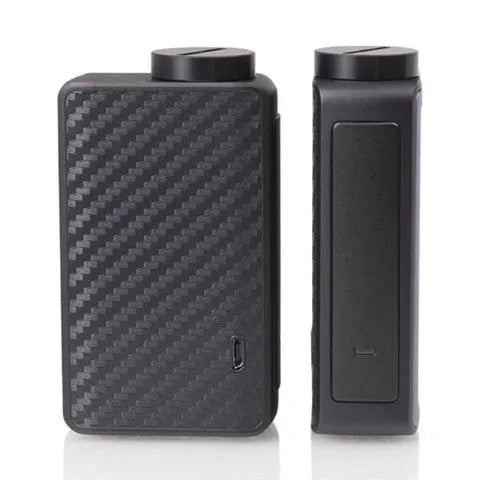

Authentic carbon fibre panel on rear

Batteries: Requires 1 x 18650 battery (not included)

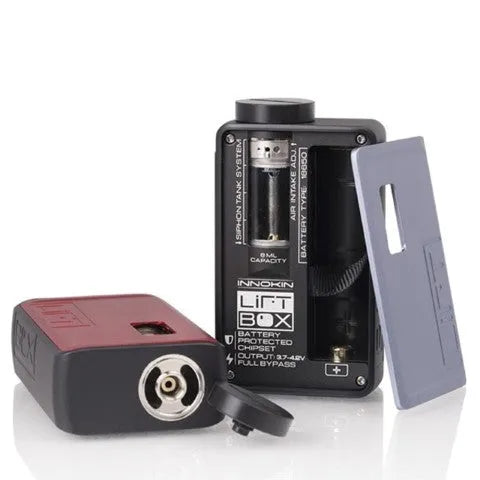

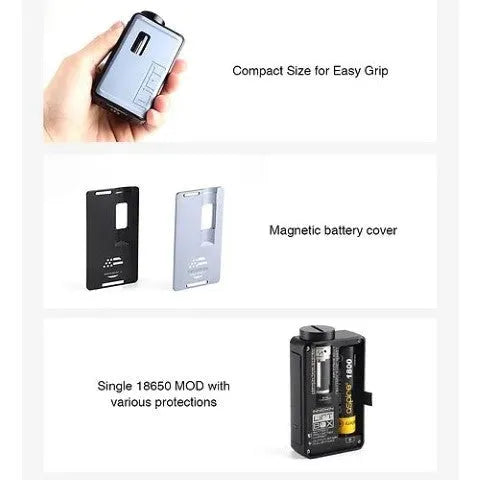

Removable, magnetic front panel for access to battery

Comes with plastic 510 stopper to protect tank

On-board USB charging facility

Simple LED battery status indicator, Green, Orange, Red

Comes with a mini USB charging cable

Long, stylish Fire bar

Compatible coil resistances: 0.1 to 3.5 Ohms

Max output current: 35 Amps

Voltage output: 3.3 to 4.2 Volts

Atomizer short-circuit cut-out for coil resistances below 0.08 Ohms

Battery low voltage & reverse polarity protection

High-capacity tank for lots of vaping between refills

Superbly well manufactured

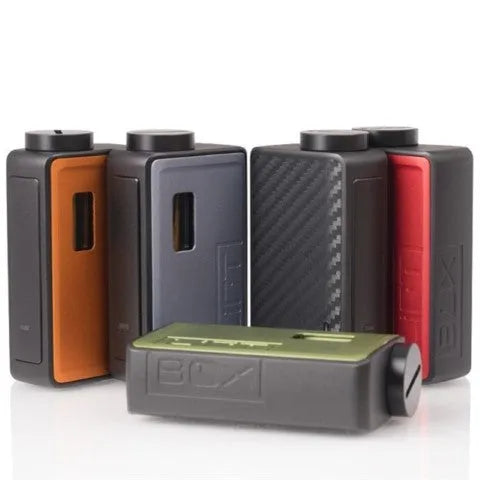

5 fashionable front panel colours: Black, Orange, Grey, Red, or Green

What's in the box:

Innokin Liftbox Bastion Squonk Mod

Spare O-rings

Battery Charge Cable (Mini USB)

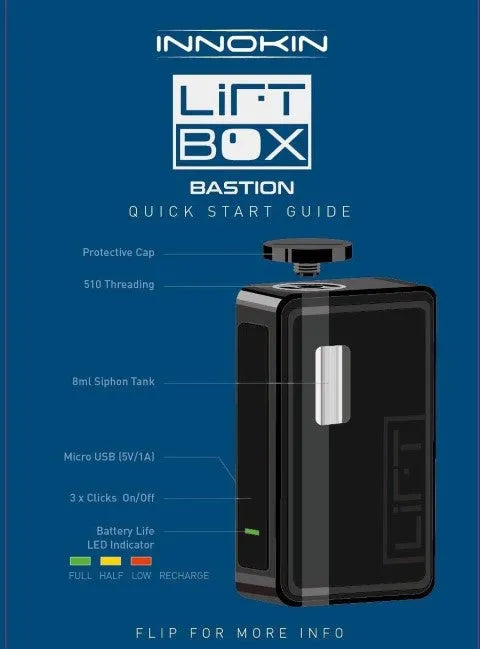

Quick Start Guide

Warning & Safety Guide

Warranty Card

Battery Care Guide

Innokin Stickers
