Why is Coilology Framed Staple Wire better than plain wires?

Coilology Framed Staple Wire is better than plain wires because of its structure. The many nooks and crannies of the Framed Staple Wire not only wick the e-liquid better than plain wires, but they also trap more e-liquid to get vapourised.

What alloys and resistances is Coilology Framed Staple Wire available in?

Coilology Framed Staple Wire is available in Ni80 at 1.14 Ohm/ft and SS316L at 0.87 Ohm/ft

Is Coilology Framed Staple Wire for advanced vapers only?

It is recommended that you familiarise yourself with Ohm's Law and understand battery safety before attempting to work with DIY atomisers, getting it wrong can have dire consequences.

1 4

Coilology

Coilology Framed Staple Wire

Name: Coilology Framed Staple Wire
Brand: Coilology
Price: 6.45 GBP
Availability: InStock

Coilology Framed Staple Wire

£6.45 GBP

~~£6.95 GBP~~ £6.45 GBP

Sale Sold out

Shipping calculated at checkout. FREE Shipping on orders over £30

Type [SS316L] 0.87Ω/ ft [Ni80] 1.41Ω/ ft

Quantity

This is an age restricted product. You must be 18 or older in order to purchase this item. An age check will be completed during checkout using OneID. This process works automatically and you do not have to take pictures of passports or driving licences and you will NOT be asked for sensitive information. Learn more about OneID.

Coilology Framed Staple Wire is perfect for those who like to build their own coils for their RDA or RTA.

The multi strand core gives Framed Staple Wire a faster ramp up time and arguably better flavour than Standard Clapton Wire, due to the increase in surface area within the core.

Framed Staple Wire is produced by first taking 4 strands of 0.3mm x 0.1mm ribbon wire, stacked on top of each other, these wires are then Framed by 2 strands 28g wire (one either side of the stack), this is then Claptonised with a smaller gauge wire. Because the core is so wide the resulting Clapton wire resembles staples, hence the name.

These Coilology Framed Staple Wire spools are designed for DIY lovers to spend your time exploring builds, get creative!

Available in SS316L or Ni80, the Ni80 Coilology Framed Staple Wires have a faster ramp up time and are to be used in Wattage mode only and the SS316L variant can be used in temperature control or Wattage modes.

Coilology Framed Staple Wire Features:

10 Foot spools

Notched spool for tidy storage

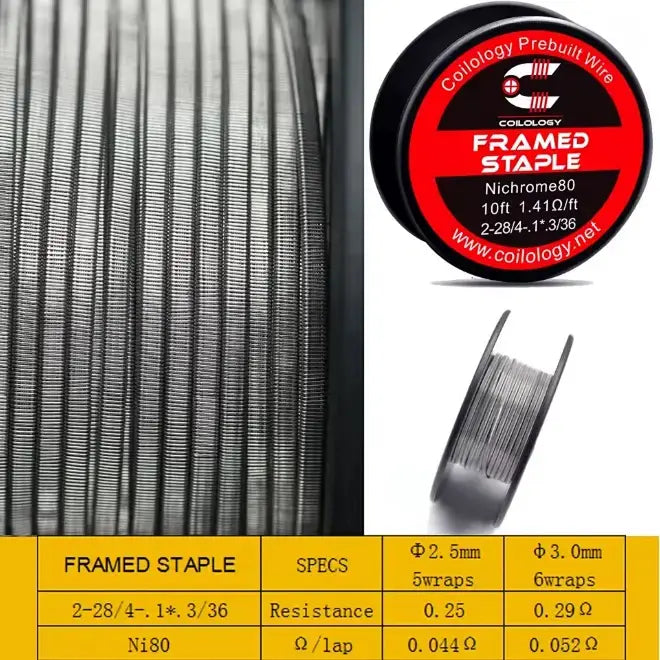

[Ni80] 2-28/ 4 x (0.1 x 0.3mm) / 36 1.41 Ohm/ft

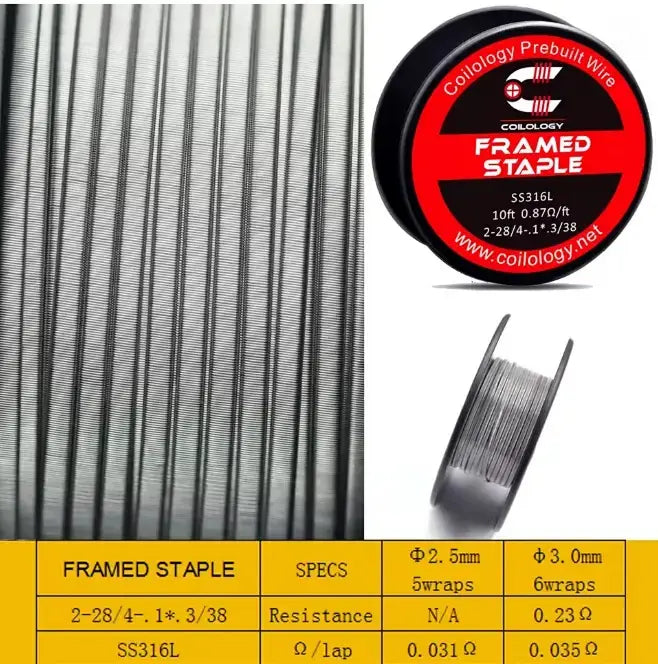

[SS316L] 2-28/ 4 x (0.1 x 0.3mm) / 38 (0.26Ω) 0.87 Ohm/ft

Ni80 for fast ramp up time

SS316L for Temperature Control

What’s in the spool:
10ft Coilology Framed Staple Wire

Warning:

Coilology Framed Staple Wire is intended for EXPERIENCED users only.

Coil resistances may vary slightly depending on the RDA/RTA and how accurately the mod reads the coils. Length of the leads go in to post holes will effect the resistance as well. All our coils have been tested several times to get the most accurate reading possible.

Knowledge on battery safety and Ohms law is strongly recommended. Use at your own risk. Coilology Co,. Limited and retailers are NOT responsible for injury or damage caused to property or person due to misuse of our product.
